SN74S157D

SN74S157D Overview

This product is manufactured by Texas Instruments. Multiplexers The product uses the 74S logic family. The propagation delay time is 7.5 ns at 5 V. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Quad 2 to 1 The height of the product is 1.58 mm. 2.0 V to 0.8 V Input Voltage 9.9 mm long This product has Quad circuit. Output current: - 800 mA Output Voltage is 2.7 V to 3.6 V Texas Instruments is a trusted brand for quality electronics Multiplexer. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA 4.75 V to 5.25 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 1 of 100 Logic ICs as subcategory 1. 0.014829 oz of Unit Weight

SN74S157D Image

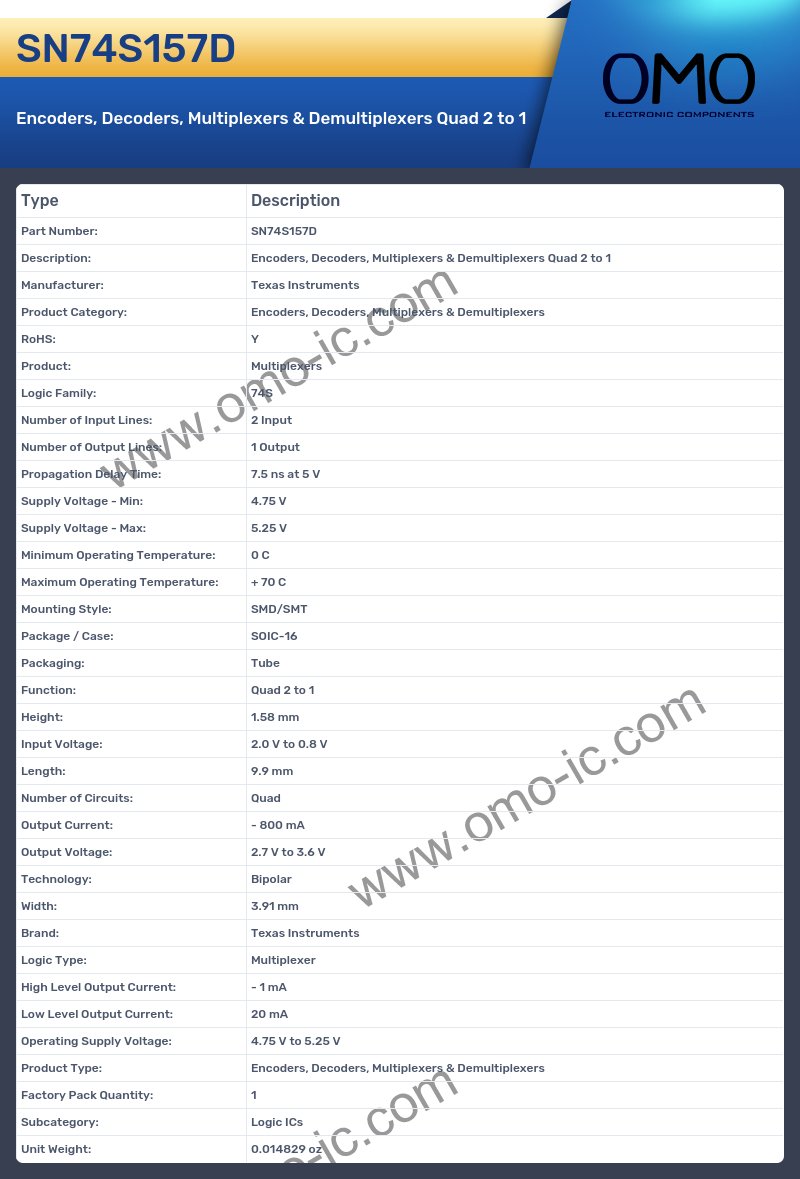

SN74S157D Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Multiplexers
• Logic Family: 74S
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 7.5 ns at 5 V
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Function: Quad 2 to 1
• Height: 1.58 mm
• Input Voltage: 2.0 V to 0.8 V
• Length: 9.9 mm
• Number of Circuits: Quad
• Output Current: - 800 mA
• Output Voltage: 2.7 V to 3.6 V
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Multiplexer
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.014829 oz
