SN74LVC823APW

SN74LVC823APW Overview

This product is manufactured by Texas Instruments. This product has 1 circuit. The product uses the LVC logic family. Bus Interface Flip-Flop. Polarity type: Non-Inverting CMOS, TTL input type The output type is 3-State. The propagation delay time is 8.9 ns. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 1.65 V Supply Voltage - Max: 3.6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 1.15 mm. 7.8 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 9 for efficient performance. 3.3 V operating supply voltage range Flip Flops product type Master Reset Reset Type 60 of 100 Logic ICs as subcategory 1. 0.003157 oz of Unit Weight

SN74LVC823APW Image

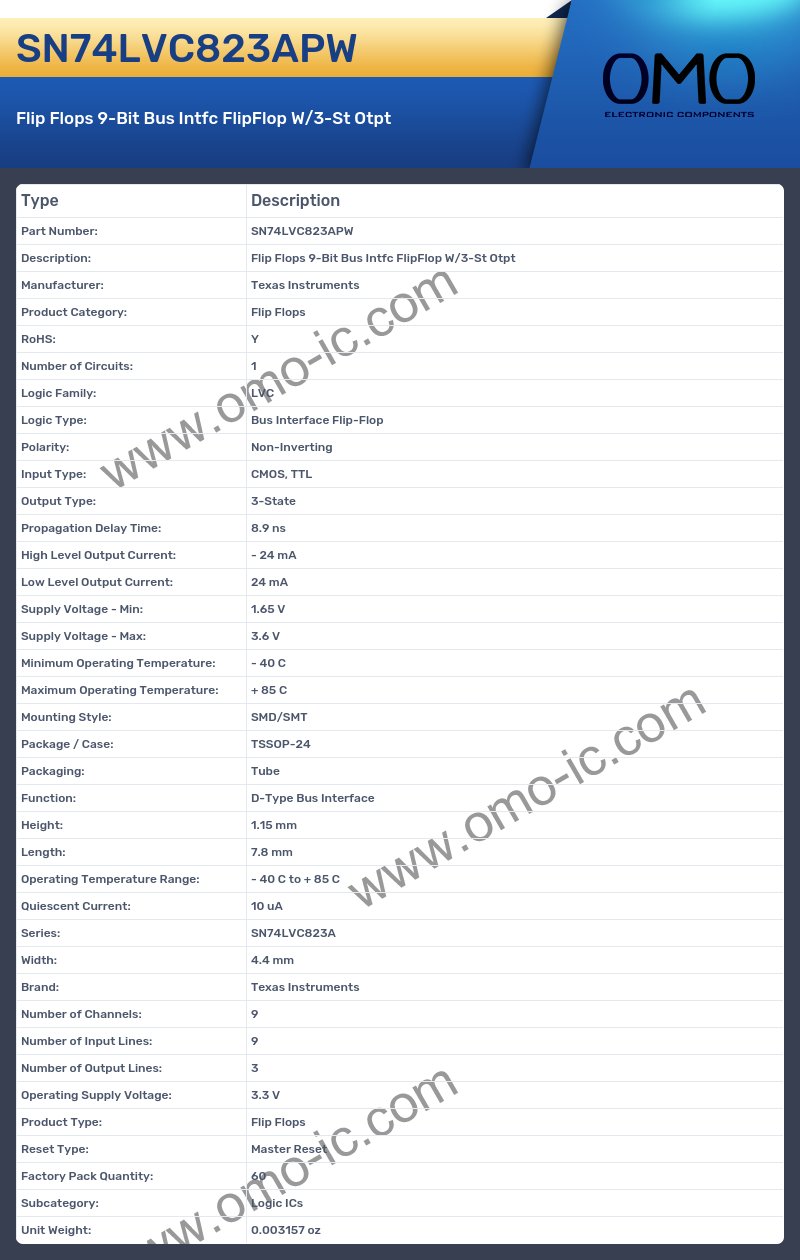

SN74LVC823APW Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 1
• Logic Family: LVC
• Logic Type: Bus Interface Flip-Flop
• Polarity: Non-Inverting
• Input Type: CMOS, TTL
• Output Type: 3-State
• Propagation Delay Time: 8.9 ns
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 1.65 V
• Supply Voltage - Max: 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Packaging: Tube
• Function: D-Type Bus Interface
• Height: 1.15 mm
• Length: 7.8 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 10 uA
• Series: SN74LVC823A
• Width: 4.4 mm
• Brand: Texas Instruments
• Number of Channels: 9
• Number of Input Lines: 9
• Number of Output Lines: 3
• Operating Supply Voltage: 3.3 V
• Product Type: Flip Flops
• Reset Type: Master Reset
• Factory Pack Quantity: 60
• Subcategory: Logic ICs
• Unit Weight: 0.003157 oz
