SN74LVC646ADW

SN74LVC646ADW Overview

This product is manufactured by Texas Instruments. The product uses the 74LVC logic family. The product's LVTTL input level ensures compatibility with a wide range of devices. LVTTL Output Level for flexible output configuration The output type is 3-State. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 8.8 ns. Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a The SN54LVC646A octal bus transceiver and register is designed for 2.7-V to 3.6-V VCC operation The height of the product is 2.35 mm. 15.4 mm long This product has 8 circuit. CMOS Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. Maximum supply current: 10 uA 1.65 V to 3.6 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 25 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.022025 oz of Unit Weight

SN74LVC646ADW Image

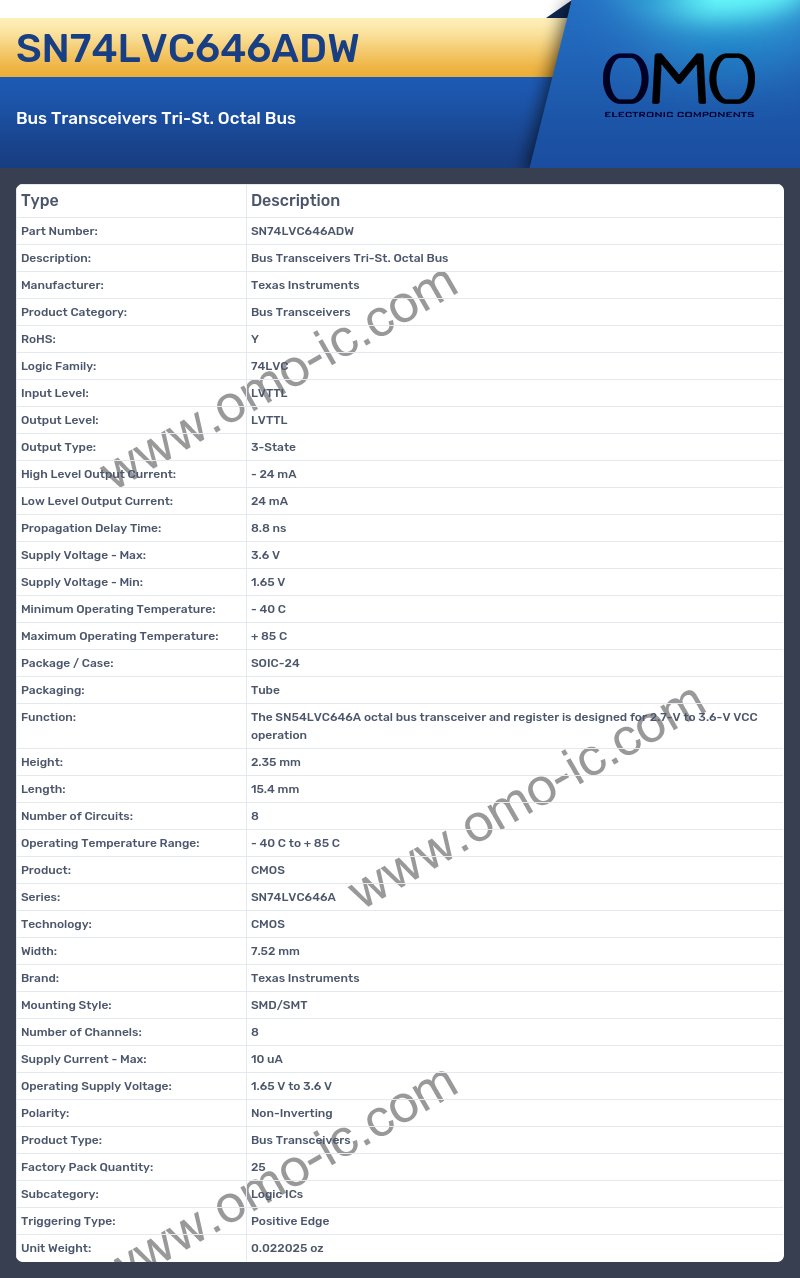

SN74LVC646ADW Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: 74LVC
• Input Level: LVTTL
• Output Level: LVTTL
• Output Type: 3-State
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 8.8 ns
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOIC-24
• Packaging: Tube
• Function: The SN54LVC646A octal bus transceiver and register is designed for 2.7-V to 3.6-V VCC operation
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Circuits: 8
• Operating Temperature Range: - 40 C to + 85 C
• Product: CMOS
• Series: SN74LVC646A
• Technology: CMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Supply Current - Max: 10 uA
• Operating Supply Voltage: 1.65 V to 3.6 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.022025 oz
