SN74LS670NE4

SN74LS670NE4 Overview

This product is manufactured by Texas Instruments. Bipolar. The product uses the LS logic family. This product has Octal circuit. The propagation delay time is 45 ns. This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Register File The height of the product is 4.57 mm. Single-Ended input type 19.3 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 4 for efficient performance. 4.75 V to 5.25 V operating supply voltage range Polarity type: Non-Inverting Registers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

SN74LS670NE4 Image

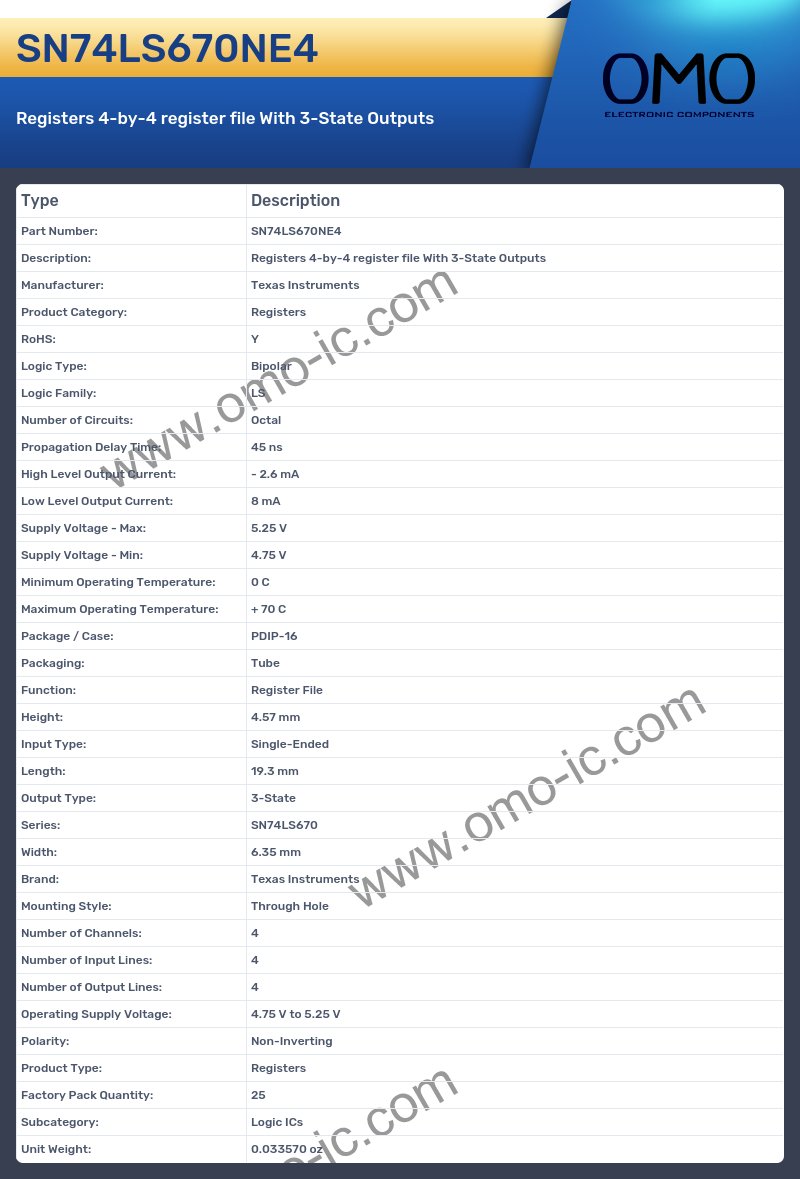

SN74LS670NE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Registers
• RoHS: Y
• Logic Type: Bipolar
• Logic Family: LS
• Number of Circuits: Octal
• Propagation Delay Time: 45 ns
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 8 mA
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Register File
• Height: 4.57 mm
• Input Type: Single-Ended
• Length: 19.3 mm
• Output Type: 3-State
• Series: SN74LS670
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 4
• Number of Input Lines: 4
• Number of Output Lines: 4
• Operating Supply Voltage: 4.75 V to 5.25 V
• Polarity: Non-Inverting
• Product Type: Registers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
