SN74LS595DR

SN74LS595DR Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 8 circuit. Number of bits: 8 bit SOP-16 package/case type is utilized by this product. The product uses the 74LS logic family. Bipolar. The output type is 3-State. The propagation delay time is 35 ns. Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Reel packaging for easy dispensing t's a Shift Register Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 4.75 V to 5.25 V operating supply voltage range Counter Shift Registers product type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN74LS595DR Image

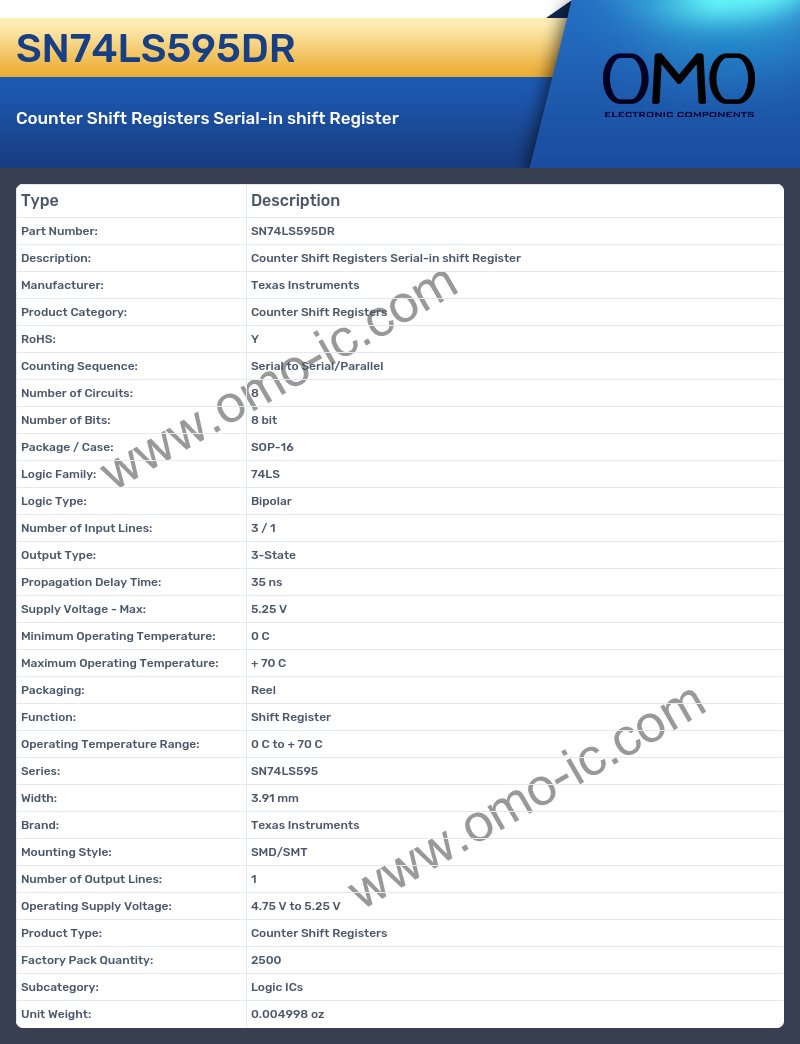

SN74LS595DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 8
• Number of Bits: 8 bit
• Package / Case: SOP-16
• Logic Family: 74LS
• Logic Type: Bipolar
• Number of Input Lines: 3 / 1
• Output Type: 3-State
• Propagation Delay Time: 35 ns
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Reel
• Function: Shift Register
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74LS595
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 1
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
