SN74LS38DBR

SN74LS38DBR Overview

This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the LS logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 0 mA The propagation delay time is 32 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.95 mm. TTL input type 6.2 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics Bipolar. 5 V operating supply voltage range Logic Gates product type 2000 of 100 Logic ICs as subcategory 1. 0.004296 oz of Unit Weight

SN74LS38DBR Image

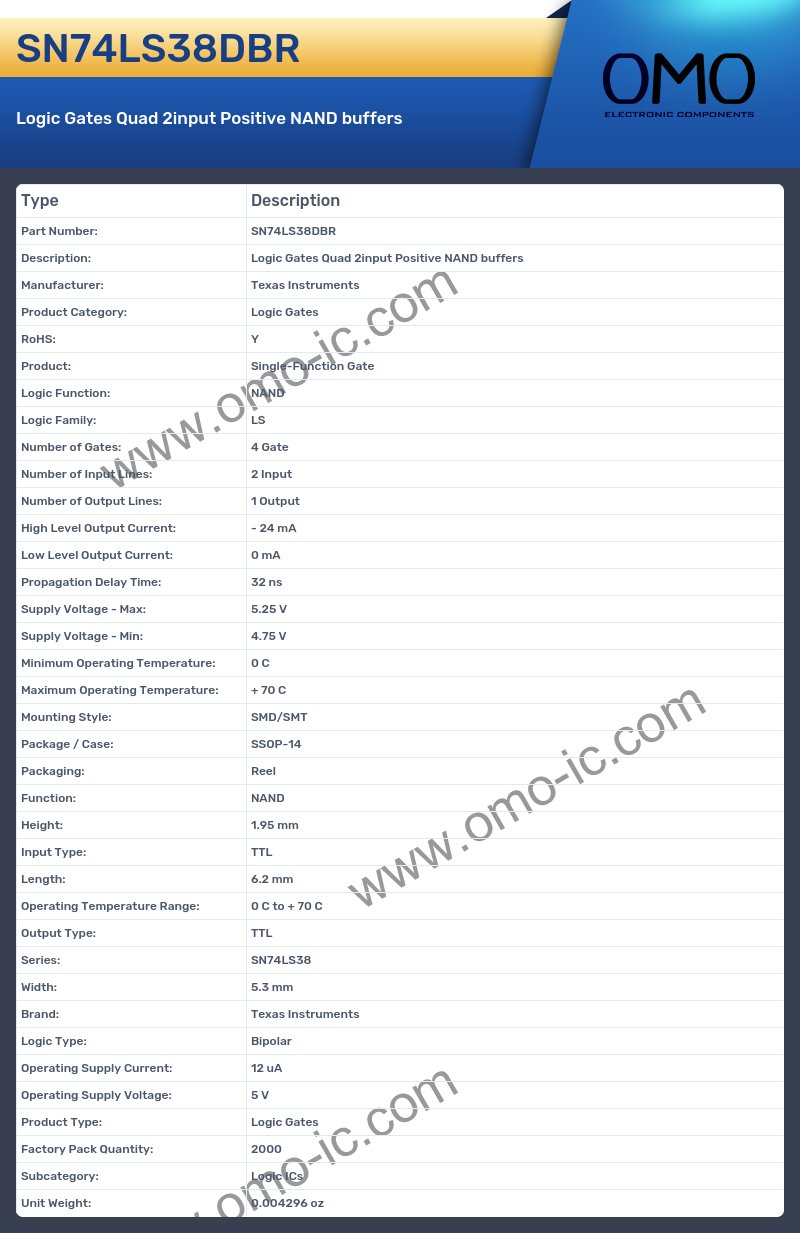

SN74LS38DBR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: LS
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 24 mA
• Low Level Output Current: 0 mA
• Propagation Delay Time: 32 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-14
• Packaging: Reel
• Function: NAND
• Height: 1.95 mm
• Input Type: TTL
• Length: 6.2 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74LS38
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: Bipolar
• Operating Supply Current: 12 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.004296 oz
