SN74HC42DR

SN74HC42DR Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the HC logic family. The propagation delay time is 38 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a 4-10 Line (1 of 10) The height of the product is 1.58 mm. 0.5 V to 1.5 V Input Voltage 9.9 mm long This product has Single circuit. Output current: +/- 25 mA Output Voltage is 2 V to 6 V Texas Instruments is a trusted brand for quality electronics Decoder. Maximum supply current: 0.008 mA This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA The Maximum Clock Frequency of this product is 28 MHz. 2 V to 6 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

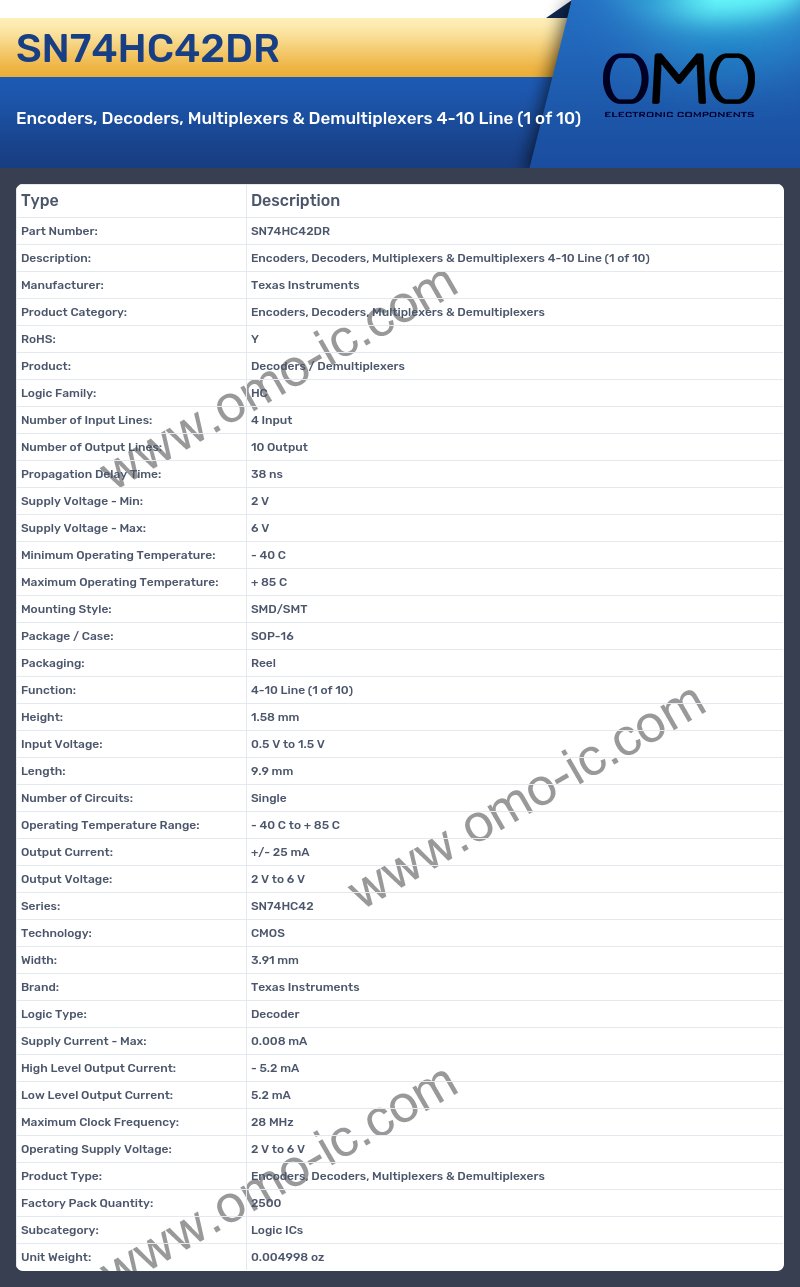

SN74HC42DR Image

SN74HC42DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: HC
• Number of Input Lines: 4 Input
• Number of Output Lines: 10 Output
• Propagation Delay Time: 38 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: 4-10 Line (1 of 10)
• Height: 1.58 mm
• Input Voltage: 0.5 V to 1.5 V
• Length: 9.9 mm
• Number of Circuits: Single
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: +/- 25 mA
• Output Voltage: 2 V to 6 V
• Series: SN74HC42
• Technology: CMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Decoder
• Supply Current - Max: 0.008 mA
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Maximum Clock Frequency: 28 MHz
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
