SN74ALS870DWG4

SN74ALS870DWG4 Overview

This product is manufactured by Texas Instruments. Bipolar. The product uses the ALS logic family. This product has 2 circuit. The propagation delay time is 26 ns. This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Register File The height of the product is 2.35 mm. Single-Ended input type 15.4 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. 5 V operating supply voltage range Polarity type: Non-Inverting Registers product type 1 of 100 Logic ICs as subcategory 1. 0.038731 oz of Unit Weight

SN74ALS870DWG4 Image

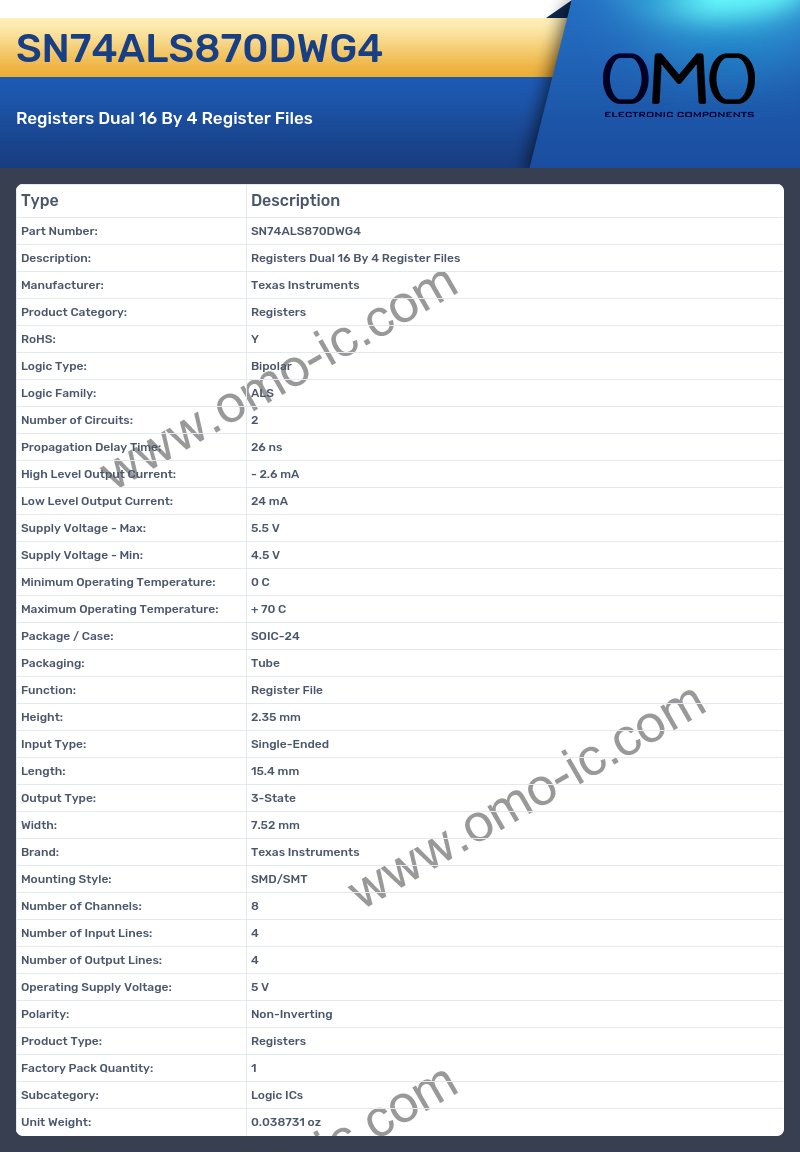

SN74ALS870DWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Registers
• RoHS: Y
• Logic Type: Bipolar
• Logic Family: ALS
• Number of Circuits: 2
• Propagation Delay Time: 26 ns
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOIC-24
• Packaging: Tube
• Function: Register File
• Height: 2.35 mm
• Input Type: Single-Ended
• Length: 15.4 mm
• Output Type: 3-State
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Number of Input Lines: 4
• Number of Output Lines: 4
• Operating Supply Voltage: 5 V
• Polarity: Non-Inverting
• Product Type: Registers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.038731 oz
