SN74ALS540-1NSR

SN74ALS540-1NSR Overview

This product is manufactured by Texas Instruments. Polarity type: Inverting Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SO-20 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.95 mm. 12.6 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the ALS logic family. Bipolar. This product is equipped with 8 for efficient performance. This product has a - 15 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 48 mA 5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 12 ns. 2000 of 100 Logic ICs as subcategory 1. 0.009408 oz of Unit Weight

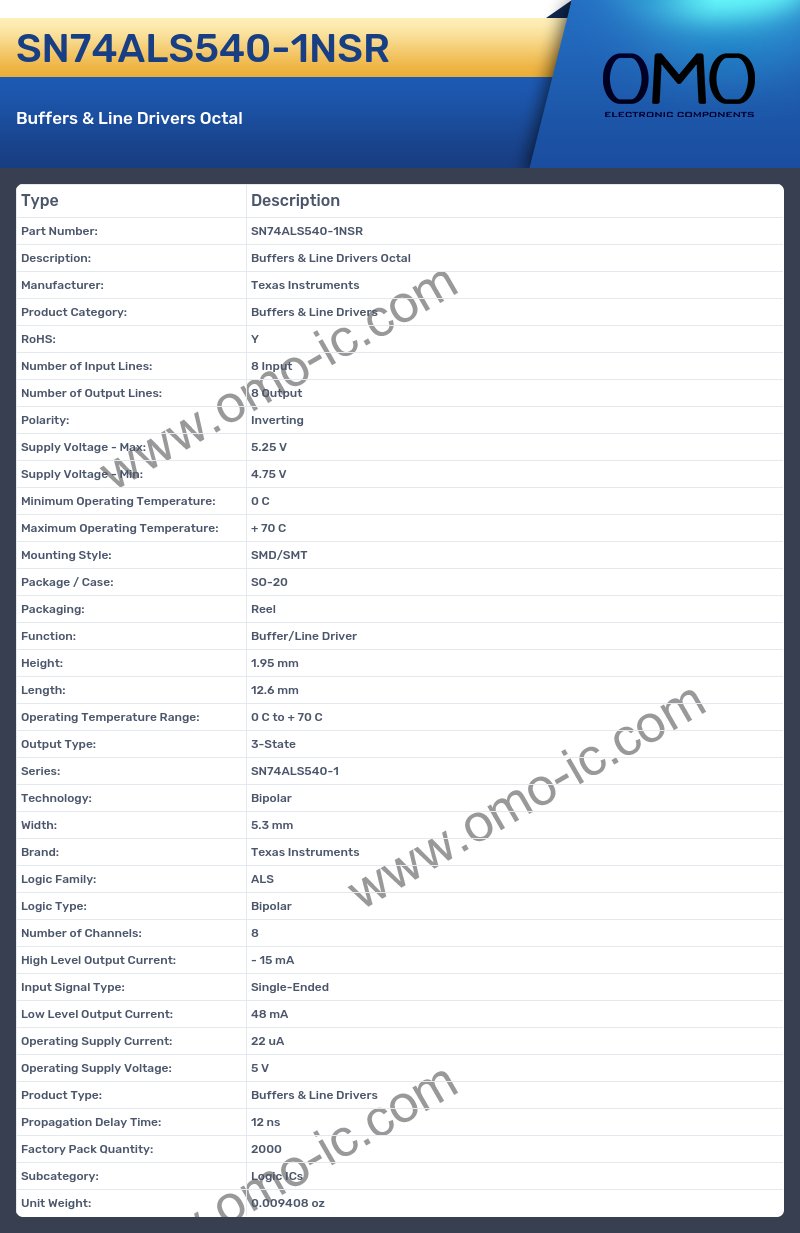

SN74ALS540-1NSR Image

SN74ALS540-1NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 8 Output
• Polarity: Inverting
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SO-20
• Packaging: Reel
• Function: Buffer/Line Driver
• Height: 1.95 mm
• Length: 12.6 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: 3-State
• Series: SN74ALS540-1
• Technology: Bipolar
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Family: ALS
• Logic Type: Bipolar
• Number of Channels: 8
• High Level Output Current: - 15 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 48 mA
• Operating Supply Current: 22 uA
• Operating Supply Voltage: 5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 12 ns
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.009408 oz
