SN74ALS08N

SN74ALS08N Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the ALS logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 0.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The propagation delay time is 14 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Quad 2-Input. The height of the product is 4.57 mm. TTL input type 19.3 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 2-Input AND. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight

SN74ALS08N Image

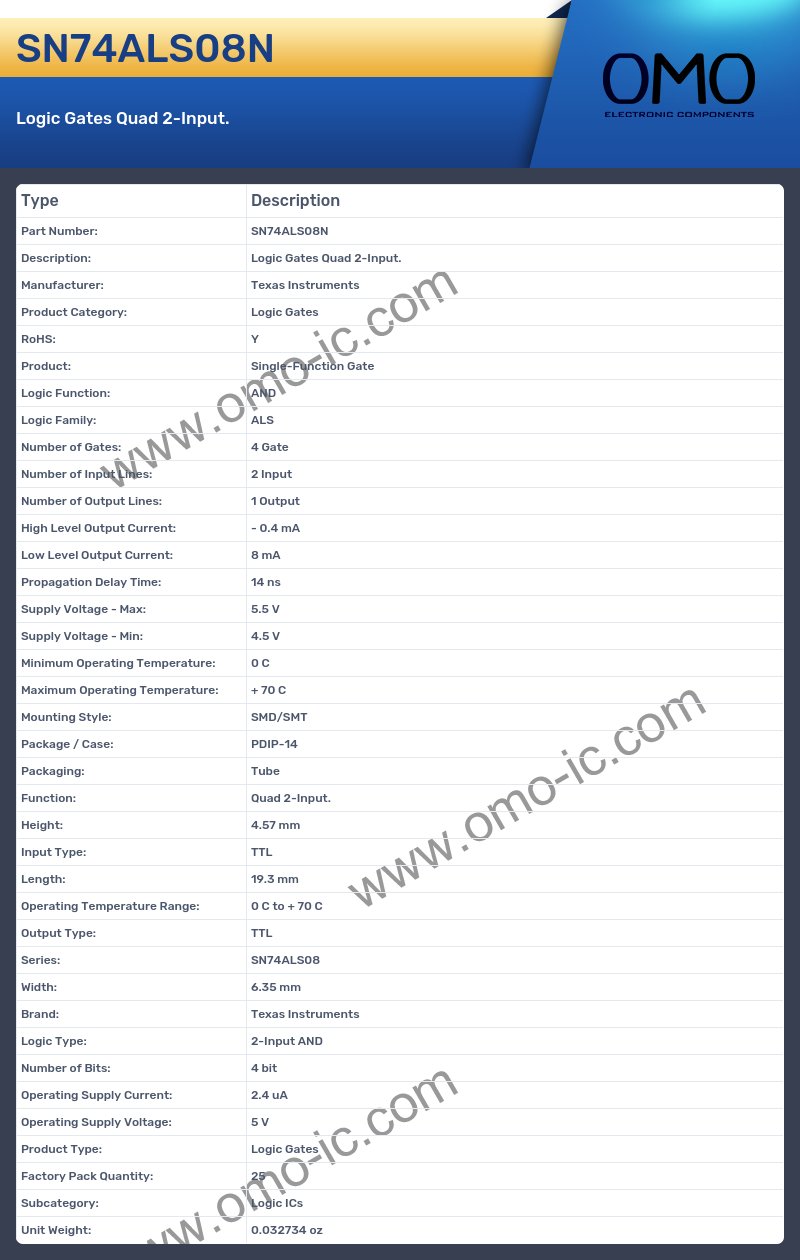

SN74ALS08N Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: ALS
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 0.4 mA
• Low Level Output Current: 8 mA
• Propagation Delay Time: 14 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Function: Quad 2-Input.
• Height: 4.57 mm
• Input Type: TTL
• Length: 19.3 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74ALS08
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Type: 2-Input AND
• Number of Bits: 4 bit
• Operating Supply Current: 2.4 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.032734 oz
