SN74AHCT594N

SN74AHCT594N Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit PDIP-16 package/case type is utilized by this product. The product uses the AHCT logic family. CMOS. The propagation delay time is 9.2 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing t's a Shift Register The height of the product is 4.57 mm. 19.3 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. 5 V operating supply voltage range Counter Shift Registers product type 25 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.033711 oz of Unit Weight

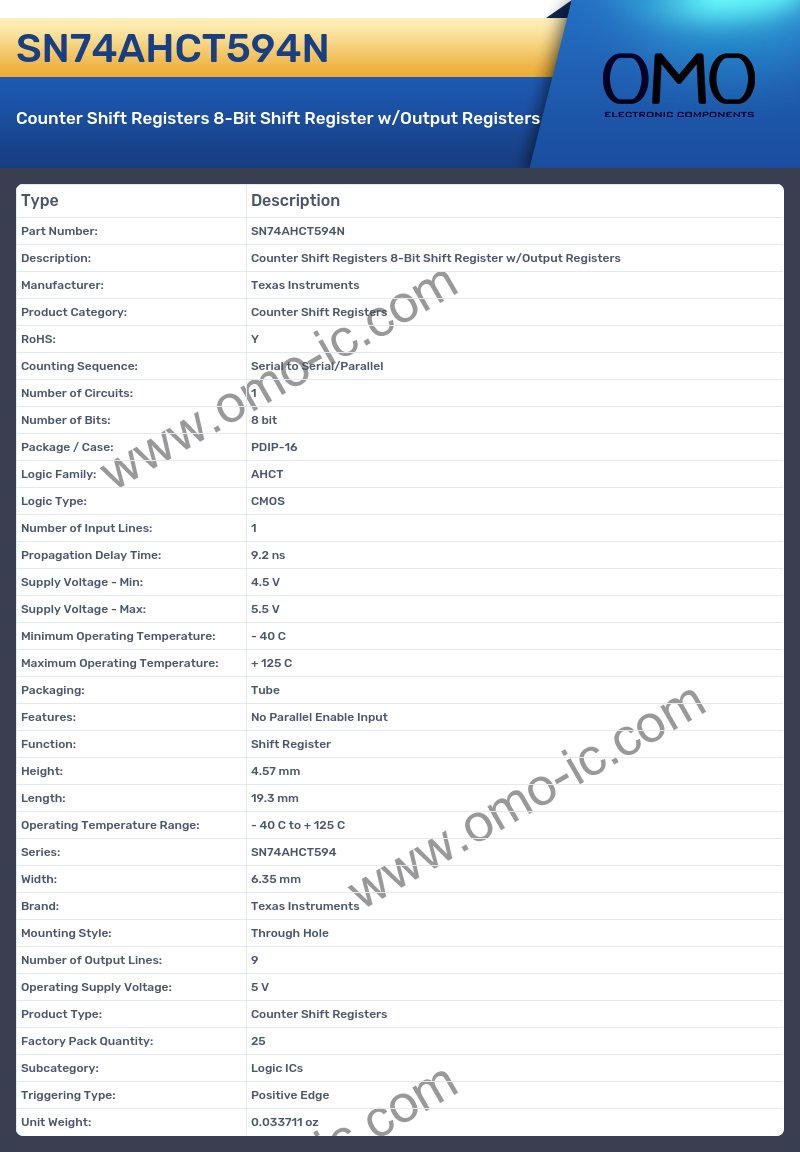

SN74AHCT594N Image

SN74AHCT594N Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: PDIP-16
• Logic Family: AHCT
• Logic Type: CMOS
• Number of Input Lines: 1
• Propagation Delay Time: 9.2 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 4.57 mm
• Length: 19.3 mm
• Operating Temperature Range: - 40 C to + 125 C
• Series: SN74AHCT594
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Output Lines: 9
• Operating Supply Voltage: 5 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.033711 oz
