SN74ACT534DBRG4

SN74ACT534DBRG4 Overview

This product is manufactured by Texas Instruments. This product has 8 circuit. The product uses the ACT logic family. D-Type Flip-Flop. Polarity type: Inverting TTL input type The output type is 3-State. The propagation delay time is 11.5 ns. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-20 package/case type is utilized by this product. Reel packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 1.95 mm. 7.2 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 8 for efficient performance. 5 V operating supply voltage range Flip Flops product type 2000 of 100 Logic ICs as subcategory 1. 0.005527 oz of Unit Weight

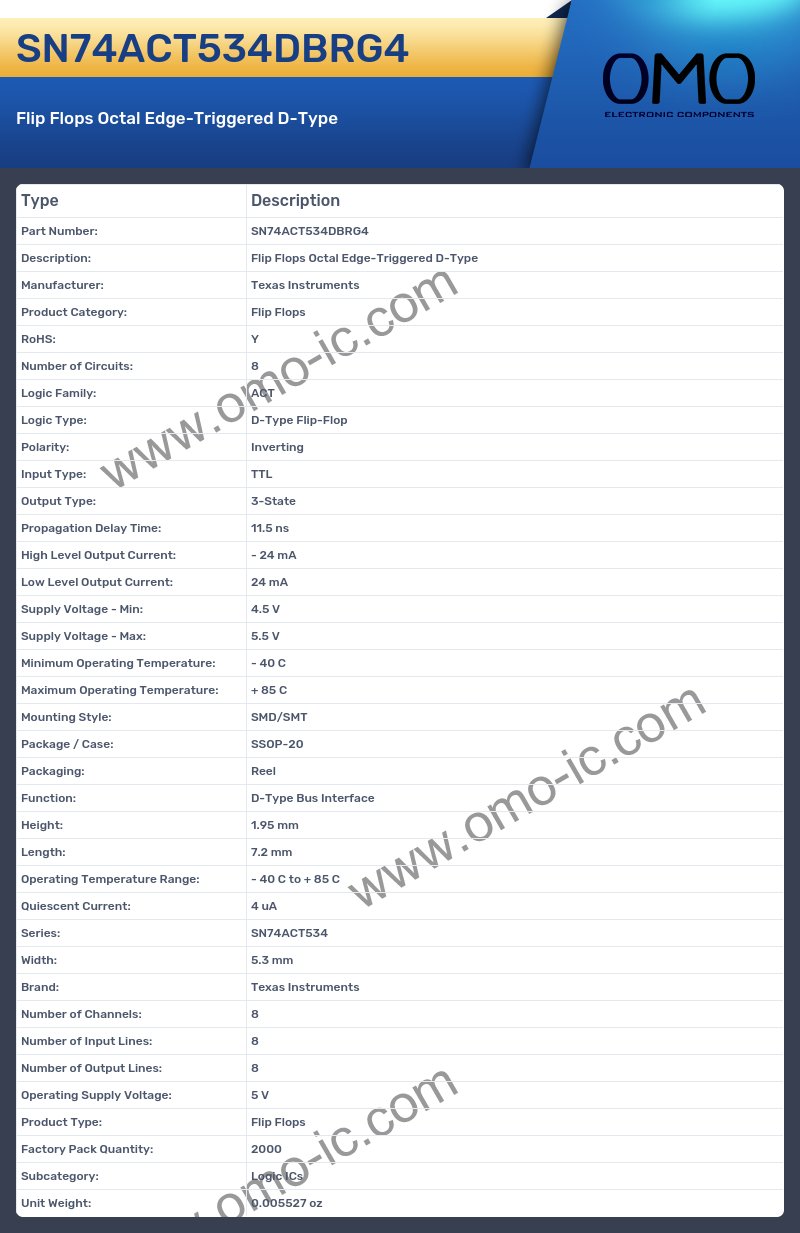

SN74ACT534DBRG4 Image

SN74ACT534DBRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 8
• Logic Family: ACT
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting
• Input Type: TTL
• Output Type: 3-State
• Propagation Delay Time: 11.5 ns
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-20
• Packaging: Reel
• Function: D-Type Bus Interface
• Height: 1.95 mm
• Length: 7.2 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 4 uA
• Series: SN74ACT534
• Width: 5.3 mm
• Brand: Texas Instruments
• Number of Channels: 8
• Number of Input Lines: 8
• Number of Output Lines: 8
• Operating Supply Voltage: 5 V
• Product Type: Flip Flops
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.005527 oz
