SN74AC14PW

SN74AC14PW Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the AC logic family. CMOS. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter Schmitt Trigger Schmitt Trigger input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics The product's CMOS input level ensures compatibility with a wide range of devices. CMOS Output Level for flexible output configuration This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 11 ns. 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

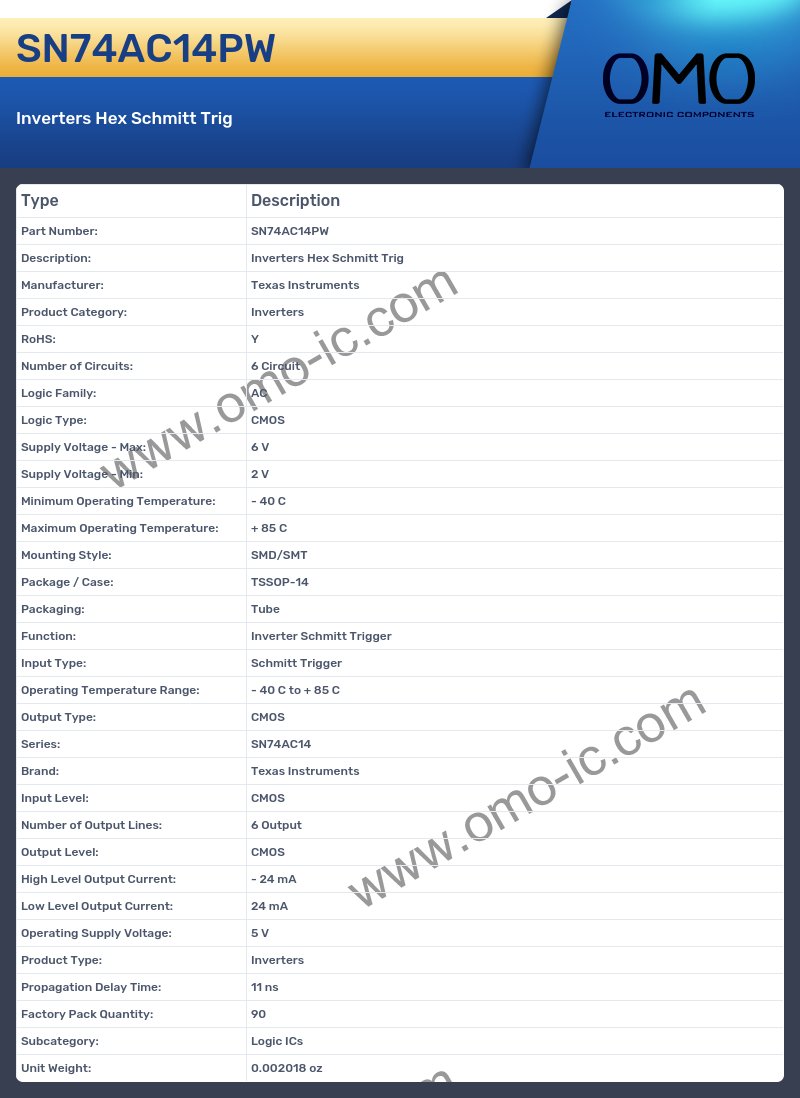

SN74AC14PW Image

SN74AC14PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: AC
• Logic Type: CMOS
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: Inverter Schmitt Trigger
• Input Type: Schmitt Trigger
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: CMOS
• Series: SN74AC14
• Brand: Texas Instruments
• Input Level: CMOS
• Number of Output Lines: 6 Output
• Output Level: CMOS
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 11 ns
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
