SN74154N Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the TTL logic family. The propagation delay time is 36 ns. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a 4 to 16 The height of the product is 4.57 mm. 2.0 V to 0.8 V Input Voltage 31.75 mm long This product has Quad circuit. Output current: 56 mA Output Voltage is 2.4 V to 0.4 V Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 34 mA This product has a - 0.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 16 mA The Maximum Clock Frequency of this product is 75 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 15 of 100 Logic ICs as subcategory 1. 0.131759 oz of Unit Weight

SN74154N Image

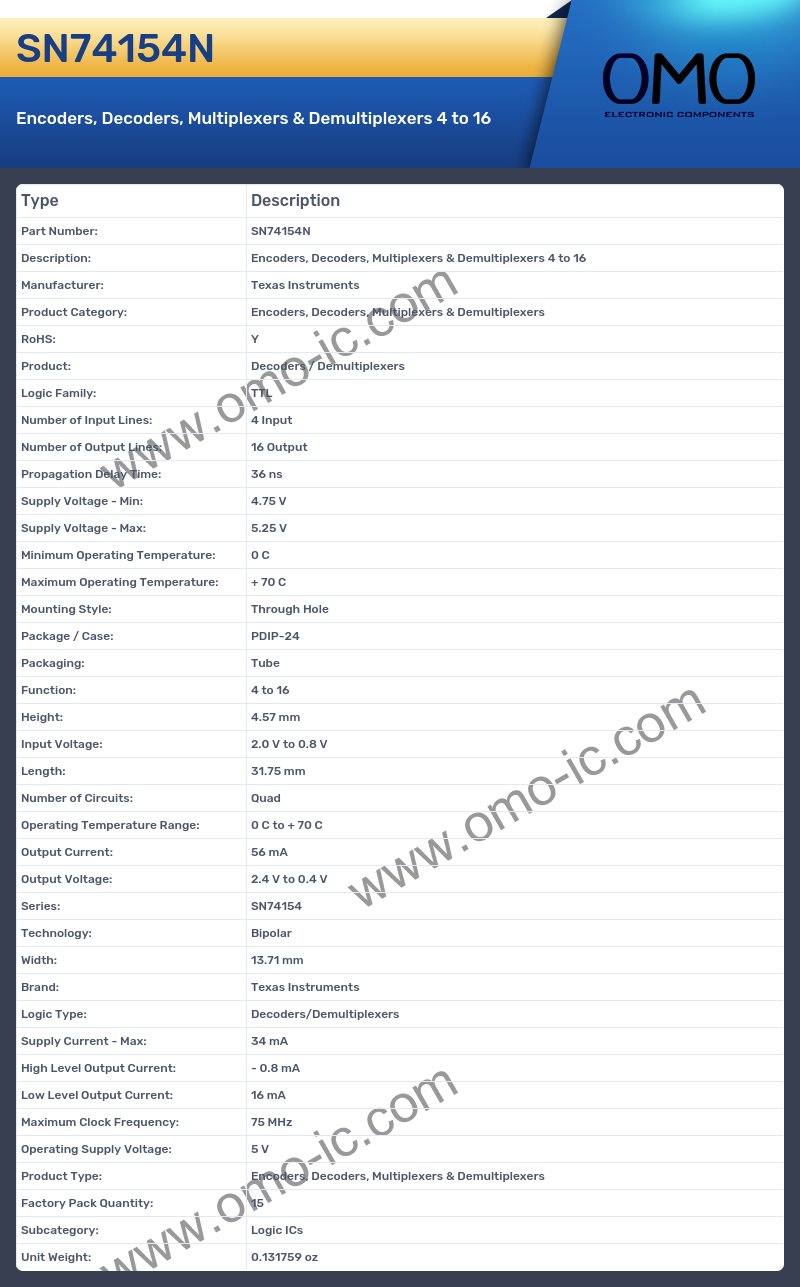

SN74154N Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: TTL
• Number of Input Lines: 4 Input
• Number of Output Lines: 16 Output
• Propagation Delay Time: 36 ns
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-24
• Packaging: Tube
• Function: 4 to 16
• Height: 4.57 mm
• Input Voltage: 2.0 V to 0.8 V
• Length: 31.75 mm
• Number of Circuits: Quad
• Operating Temperature Range: 0 C to + 70 C
• Output Current: 56 mA
• Output Voltage: 2.4 V to 0.4 V
• Series: SN74154
• Technology: Bipolar
• Width: 13.71 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 34 mA
• High Level Output Current: - 0.8 mA
• Low Level Output Current: 16 mA
• Maximum Clock Frequency: 75 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 15
• Subcategory: Logic ICs
• Unit Weight: 0.131759 oz
