SN54150J

SN54150J Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the TTL logic family. The propagation delay time is 20 ns at 5 V. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Multiplexer The height of the product is 4 mm. 31.75 mm long Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. Maximum supply current: 40000 uA This product has a - 0.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 16 mA 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 1 of 100 Logic ICs as subcategory

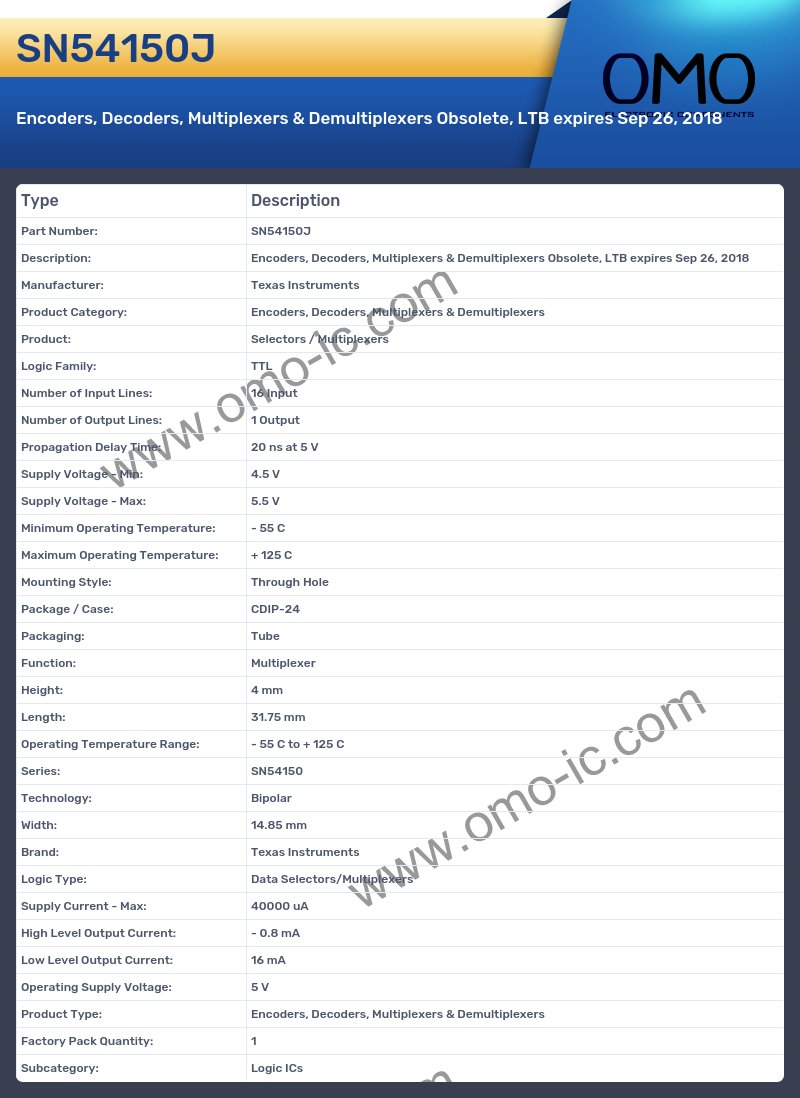

SN54150J Image

SN54150J Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• Product: Selectors / Multiplexers
• Logic Family: TTL
• Number of Input Lines: 16 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 20 ns at 5 V
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Packaging: Tube
• Function: Multiplexer
• Height: 4 mm
• Length: 31.75 mm
• Operating Temperature Range: - 55 C to + 125 C
• Series: SN54150
• Technology: Bipolar
• Width: 14.85 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• Supply Current - Max: 40000 uA
• High Level Output Current: - 0.8 mA
• Low Level Output Current: 16 mA
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
