PIC12F683-E/P

PIC12F683-E/P Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 3.5 kB. The Data RAM Size of this product is 128 B. The ADC Resolution of this product is 10 bit. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 9.27 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The Data ROM Size is 256 B. EEPROM is the data ROM type. Interface Type: RS-232, USB The product has 4 ADC channels. 8-bit Microcontrollers - MCU product type 60 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The product's PIC is Blue Gecko. 1. 0.032805 oz of Unit Weight

PIC12F683-E/P Image

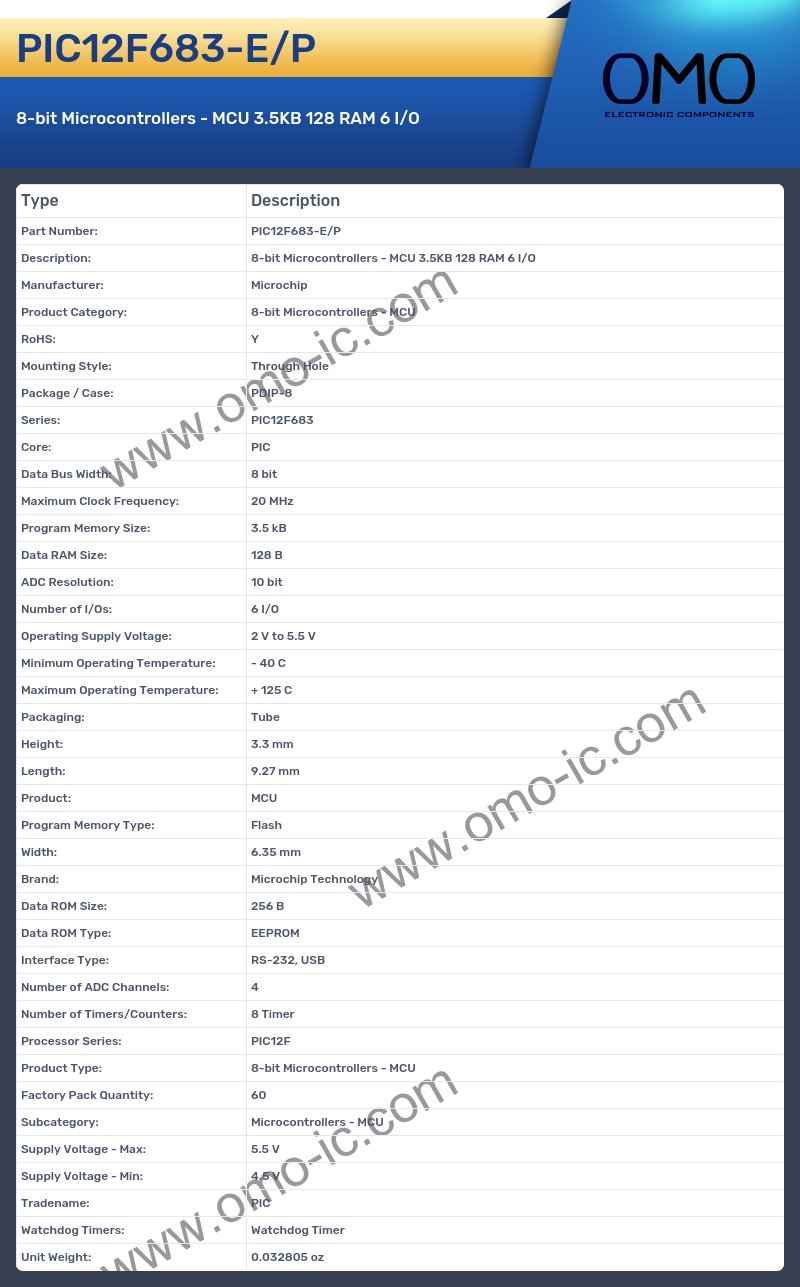

PIC12F683-E/P Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Series: PIC12F683
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 3.5 kB
• Data RAM Size: 128 B
• ADC Resolution: 10 bit
• Number of I/Os: 6 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.3 mm
• Length: 9.27 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 6.35 mm
• Brand: Microchip Technology
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Interface Type: RS-232, USB
• Number of ADC Channels: 4
• Number of Timers/Counters: 8 Timer
• Processor Series: PIC12F
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 60
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Tradename: PIC
• Watchdog Timers: Watchdog Timer
• Unit Weight: 0.032805 oz
