MCP1632-BAE/MC Overview

This product is manufactured by Microchip. Boost, Flyback Topology 1 Output is the number of outputs provided by this product. 300 kHz, 600 kHz is 60 kHz. 3 V to 5.5 V Input Voltage The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. DFN-8 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the High Speed PWM Controller type. Microchip Technology is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 18 ns fall time 3 V to 5.5 V operating supply voltage range Switching Controllers product type Rise Time is 18 ns. 150 of 100 PMIC - Power Management ICs as subcategory 1. 0.001319 oz of Unit Weight

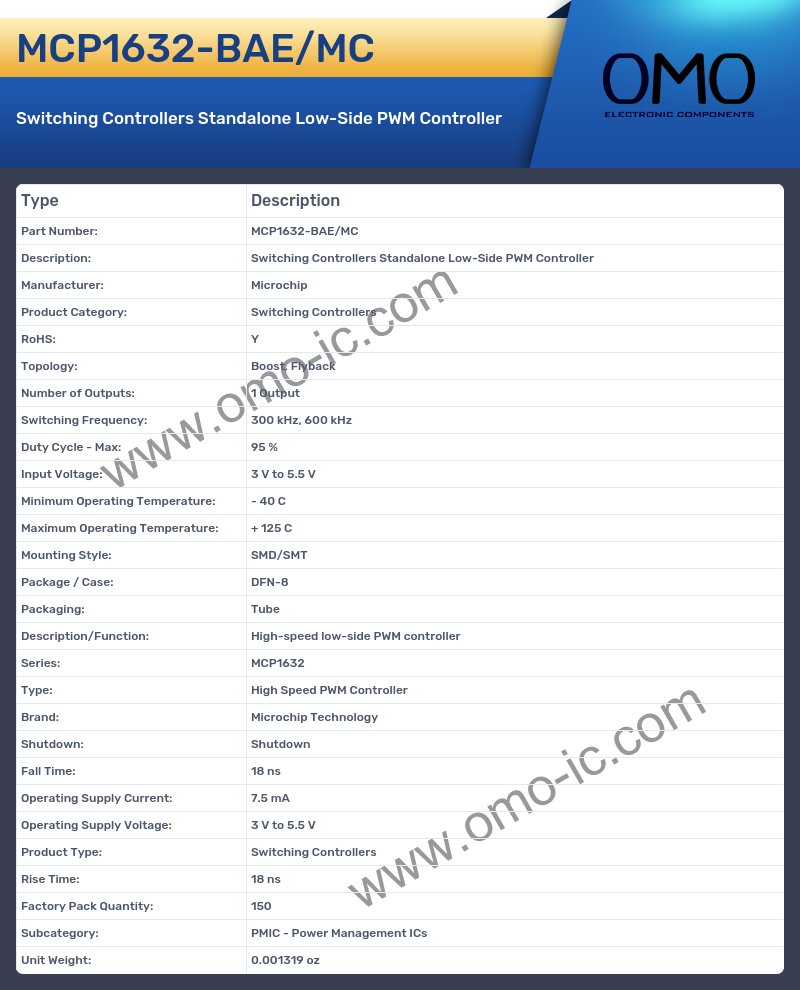

MCP1632-BAE/MC Image

MCP1632-BAE/MC Specifications

• Manufacturer: Microchip
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback
• Number of Outputs: 1 Output
• Switching Frequency: 300 kHz, 600 kHz
• Duty Cycle - Max: 95 %
• Input Voltage: 3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: DFN-8
• Packaging: Tube
• Description/Function: High-speed low-side PWM controller
• Series: MCP1632
• Type: High Speed PWM Controller
• Brand: Microchip Technology
• Shutdown: Shutdown
• Fall Time: 18 ns
• Operating Supply Current: 7.5 mA
• Operating Supply Voltage: 3 V to 5.5 V
• Product Type: Switching Controllers
• Rise Time: 18 ns
• Factory Pack Quantity: 150
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001319 oz
