LTC7543GKSW#PBF

LTC7543GKSW#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 0.25 us settling time Interface Type: Serial SPI External is the reference type. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SO-16 package/case type is utilized by this product. Tube packaging for easy dispensing Digital input type The output type is Current. This device belongs to the Standard type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 1 LSB is 0.2%. INL is within 0.5 LSB 0.55 mW DACs - Digital to Analog Converters product type 47 of 100 Data Converter ICs as subcategory THD is as low as - 108 dB.

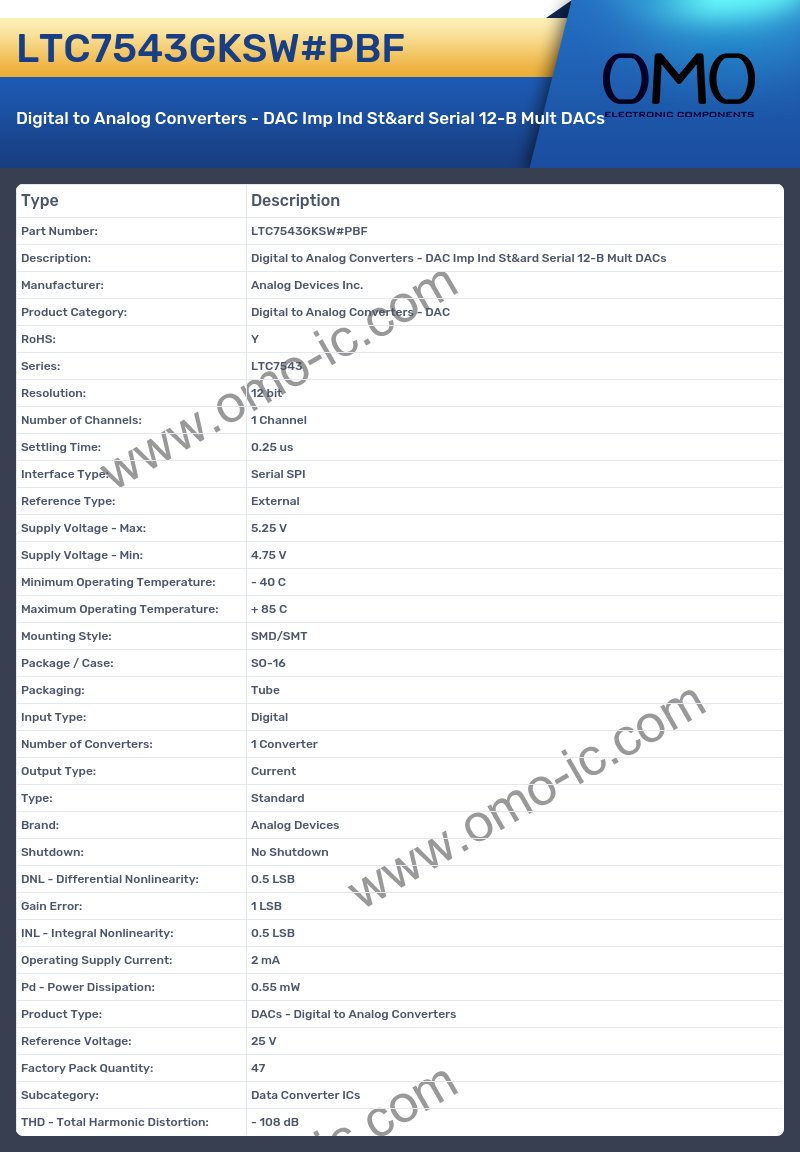

LTC7543GKSW#PBF Image

LTC7543GKSW#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: LTC7543
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Settling Time: 0.25 us
• Interface Type: Serial SPI
• Reference Type: External
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SO-16
• Packaging: Tube
• Input Type: Digital
• Number of Converters: 1 Converter
• Output Type: Current
• Type: Standard
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.5 LSB
• Gain Error: 1 LSB
• INL - Integral Nonlinearity: 0.5 LSB
• Operating Supply Current: 2 mA
• Pd - Power Dissipation: 0.55 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 25 V
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 108 dB
