LP0701N3-G

LP0701N3-G Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of Through Hole. TO-92-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 16.5 V 500 mA continuous drain current Rds On value of 1.5 Ohms Gate-Source Threshold Voltage Range: 500 mV Gate-Source Voltage: 5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1 W This product has a Single configuration. The Channel Mode is set to Enhancement. Bulk packaging for easy dispensing The height of the product is 5.33 mm. 5.21 mm long The Transistor Type is 1 P-Channel. This device belongs to the MOSFET type. Microchip Technology is a trusted brand for quality electronics Minimum forward transconductance of 500 mS 30 ns fall time MOSFET product type Rise Time is 20 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 30 ns. The typical turn-on delay time is 20 ns. 1. 0.016000 oz of Unit Weight

LP0701N3-G Image

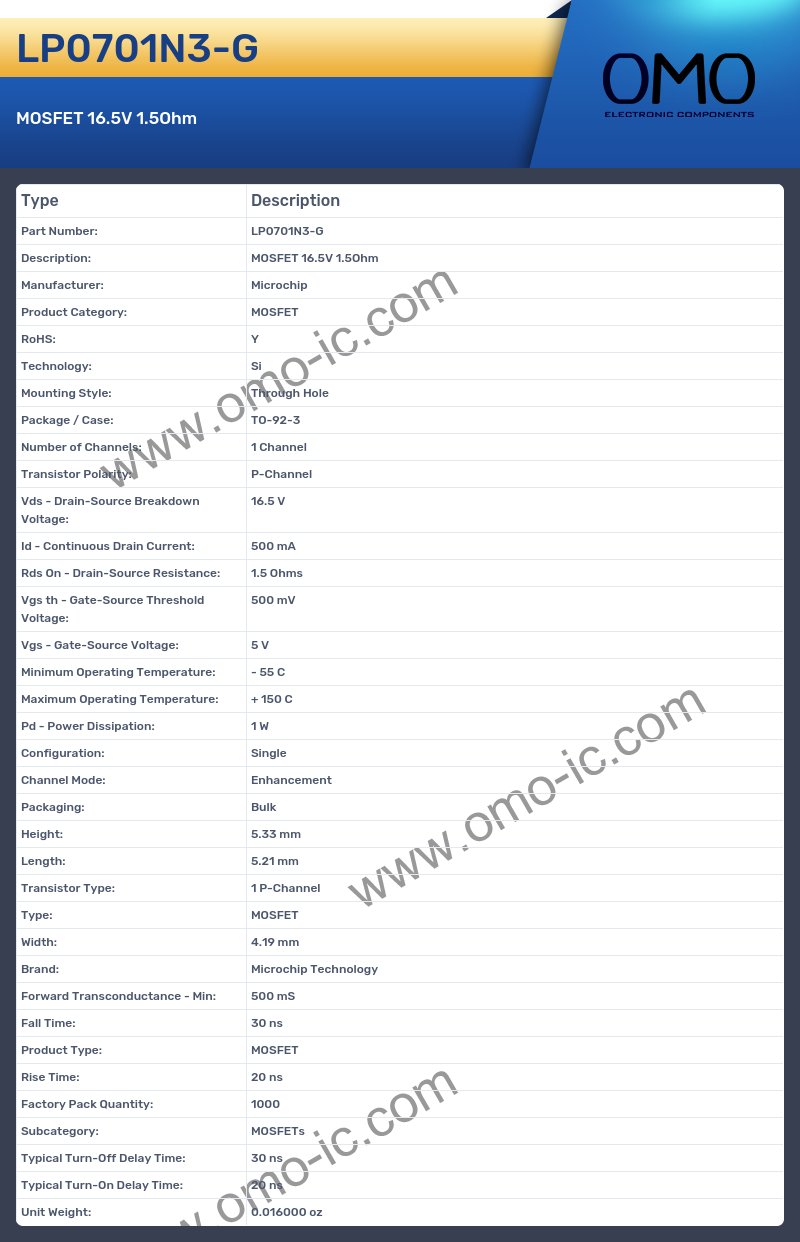

LP0701N3-G Specifications

• Manufacturer: Microchip
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-92-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 16.5 V
• Id - Continuous Drain Current: 500 mA
• Rds On - Drain-Source Resistance: 1.5 Ohms
• Vgs th - Gate-Source Threshold Voltage: 500 mV
• Vgs - Gate-Source Voltage: 5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Bulk
• Height: 5.33 mm
• Length: 5.21 mm
• Transistor Type: 1 P-Channel
• Type: MOSFET
• Width: 4.19 mm
• Brand: Microchip Technology
• Forward Transconductance - Min: 500 mS
• Fall Time: 30 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 30 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.016000 oz
