LM5035MH/NOPB

LM5035MH/NOPB Overview

This product is manufactured by Texas Instruments. Half-Bridge Topology 1 Output is the number of outputs provided by this product. 200 kHz, 500 K=kHz is 60 kHz. 105 V Input Voltage Output Voltage is 8 V to 15 V Output current: 2 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 0.9 mm. Isolated is the isolation property. 6.5 mm long The output type is Programmable. Half-Bridge PWM Controllers This device belongs to the Voltage Mode PWM Controller type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 20 ns fall time 13 V to 105 V operating supply voltage range Switching Controllers product type Rise Time is 40 ns. 73 of 100 PMIC - Power Management ICs as subcategory 1. 0.002519 oz of Unit Weight

LM5035MH/NOPB Image

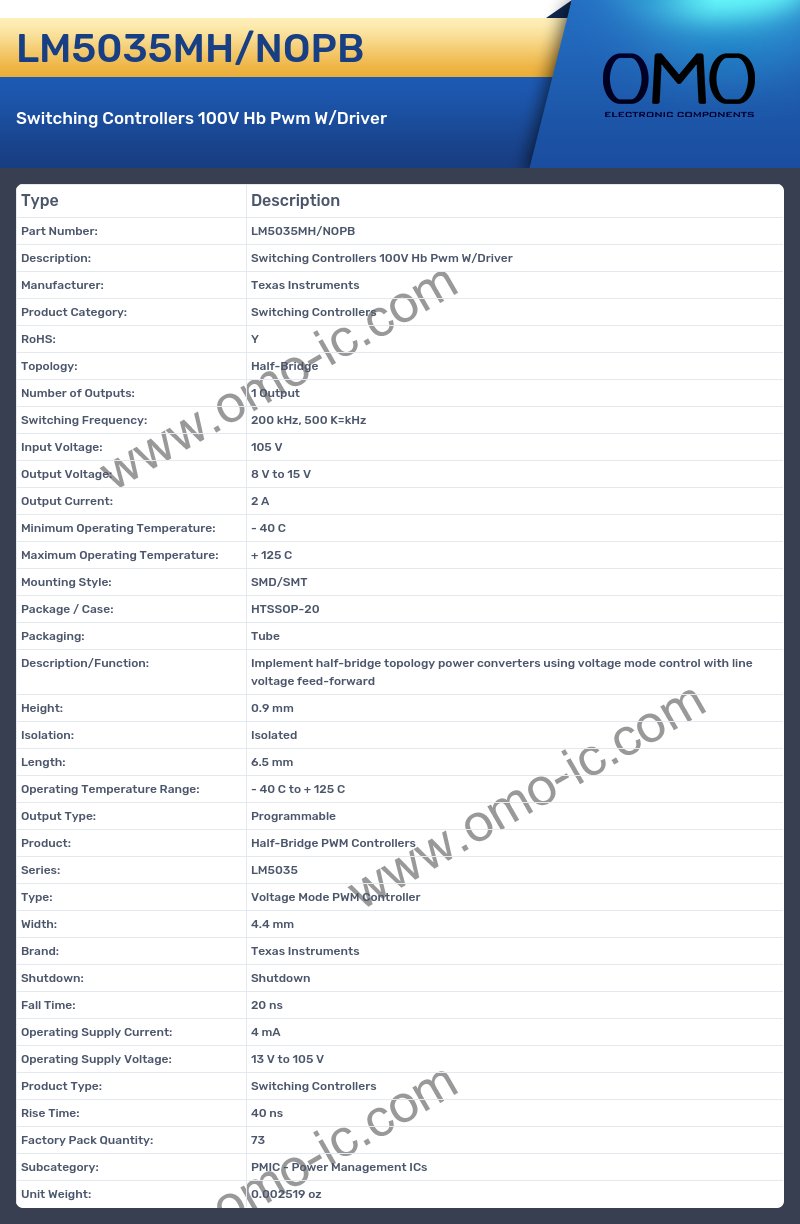

LM5035MH/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Half-Bridge
• Number of Outputs: 1 Output
• Switching Frequency: 200 kHz, 500 K=kHz
• Input Voltage: 105 V
• Output Voltage: 8 V to 15 V
• Output Current: 2 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-20
• Packaging: Tube
• Description/Function: Implement half-bridge topology power converters using voltage mode control with line voltage feed-forward
• Height: 0.9 mm
• Isolation: Isolated
• Length: 6.5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: Programmable
• Product: Half-Bridge PWM Controllers
• Series: LM5035
• Type: Voltage Mode PWM Controller
• Width: 4.4 mm
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 20 ns
• Operating Supply Current: 4 mA
• Operating Supply Voltage: 13 V to 105 V
• Product Type: Switching Controllers
• Rise Time: 40 ns
• Factory Pack Quantity: 73
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002519 oz
