LM346N

LM346N Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 250 nA of 5 uA for precise signal processing. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Low Power Amplifier. The height of the product is 5.1 mm (Max). 20 mm (Max) long Operational Amplifiers Supply Type: Dual STMicroelectronics is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 22 V. +/- 1.5 V minimum dual supply voltage +/- 1.5 V to +/- 22 V operating supply voltage range 500 mW (1/2 W) Op Amps - Operational Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.057419 oz of Unit Weight

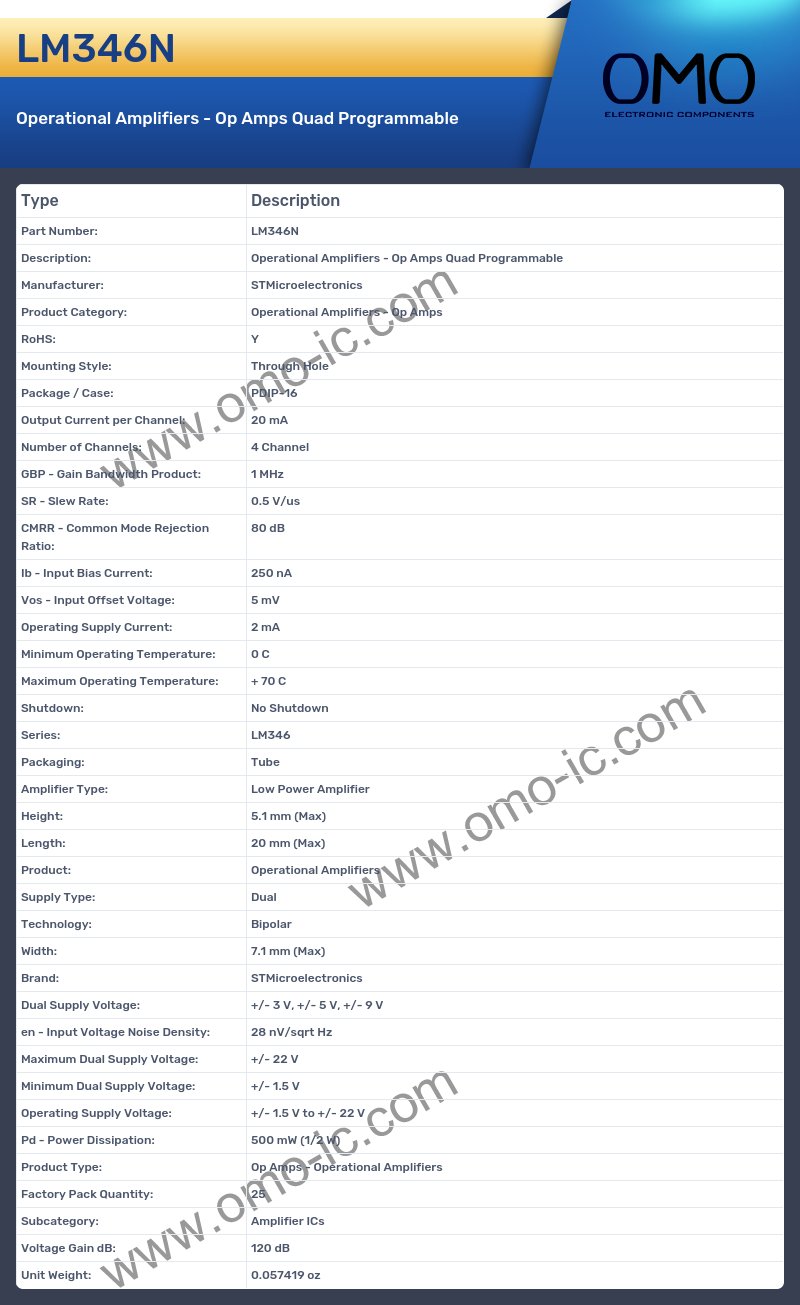

LM346N Image

LM346N Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Output Current per Channel: 20 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 1 MHz
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 5 mV
• Operating Supply Current: 2 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: LM346
• Packaging: Tube
• Amplifier Type: Low Power Amplifier
• Height: 5.1 mm (Max)
• Length: 20 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 7.1 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 28 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 22 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: +/- 1.5 V to +/- 22 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 120 dB
• Unit Weight: 0.057419 oz
