LM2902D

LM2902D Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Supply Voltage - Max: 26 V This product is equipped with 4 Channel for efficient performance. This product has a 50 dB to 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 250 nA of 5 uA for precise signal processing. Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Gain Amplifier. The height of the product is 1.58 mm. Rail-to-Rail input type 8.65 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 13 V. +/- 1.5 V minimum dual supply voltage 3 V to 26 V, +/- 1.5 V to +/- 13 V operating supply voltage range Op Amps - Operational Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.004564 oz of Unit Weight

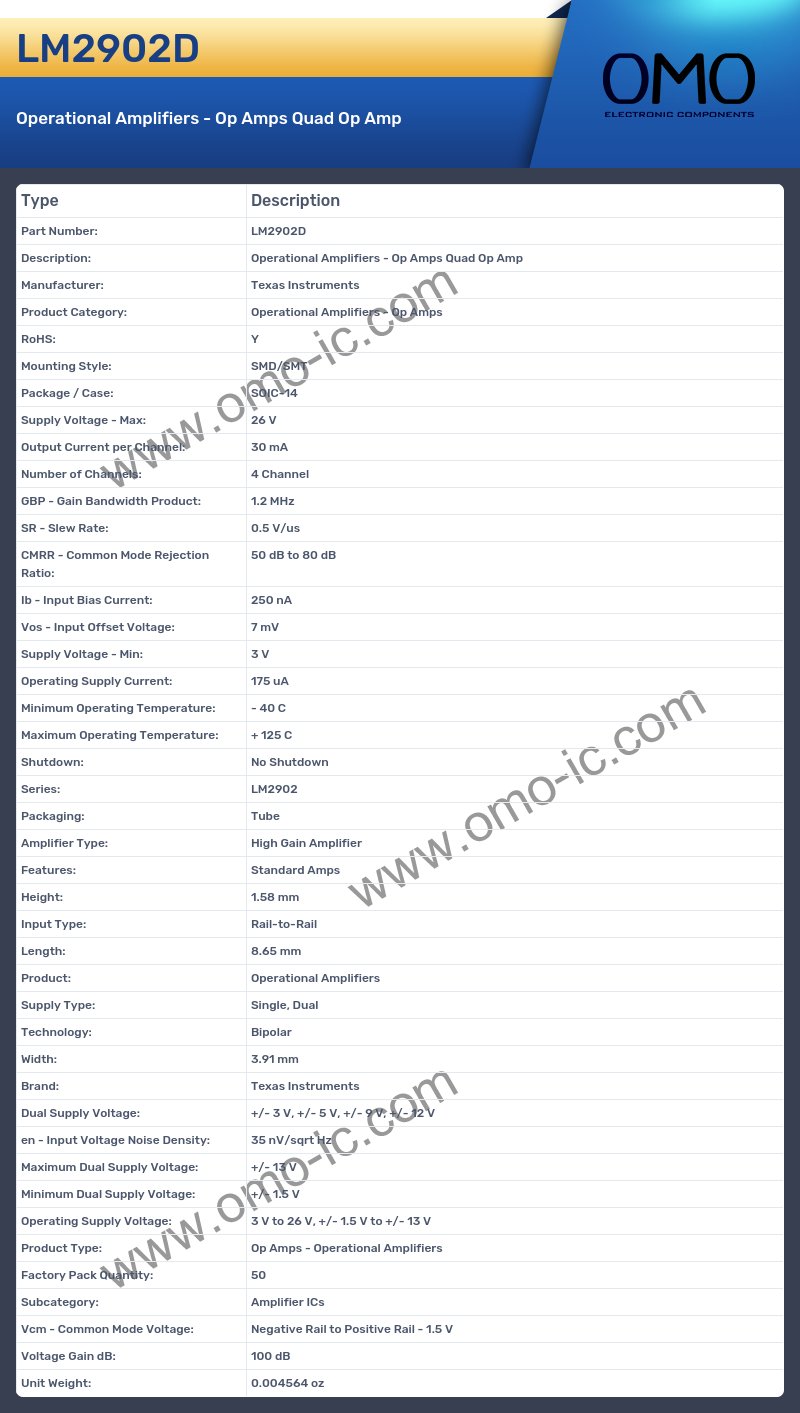

LM2902D Image

LM2902D Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Supply Voltage - Max: 26 V
• Output Current per Channel: 30 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 1.2 MHz
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 50 dB to 80 dB
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 7 mV
• Supply Voltage - Min: 3 V
• Operating Supply Current: 175 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: LM2902
• Packaging: Tube
• Amplifier Type: High Gain Amplifier
• Features: Standard Amps
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 8.65 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 35 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 13 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 26 V, +/- 1.5 V to +/- 13 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 100 dB
• Unit Weight: 0.004564 oz
