CY8CLED04DOCD1-56LTXI

CY8CLED04DOCD1-56LTXI Overview

This product is manufactured by Cypress Semiconductor. The product can operate at a maximum temperature of SMD/SMT. QFN-56 package/case type is utilized by this product. This product's M8C is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 48 MHz. The Program Memory Size of this product is 16 kB. The Data RAM Size of this product is 1 kB. The ADC Resolution of this product is 12 bit. 5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1 mm. 8 mm long The Flash of this product is Flash. Cypress Semiconductor is a trusted brand for quality electronics The SRAM. The Data ROM Size is 2 kB. EEPROM is the data ROM type. Interface Type: API, DALI, DMX512, I2C, SPI, UART, USB Yes regarding Moisture Sensitivity SOC - LED Lighting Systems on a Chip product type 260 of 100 SOC - Systems on a Chip as subcategory The product's PowerPSoC is Blue Gecko. 1. 0.006751 oz of Unit Weight

CY8CLED04DOCD1-56LTXI Image

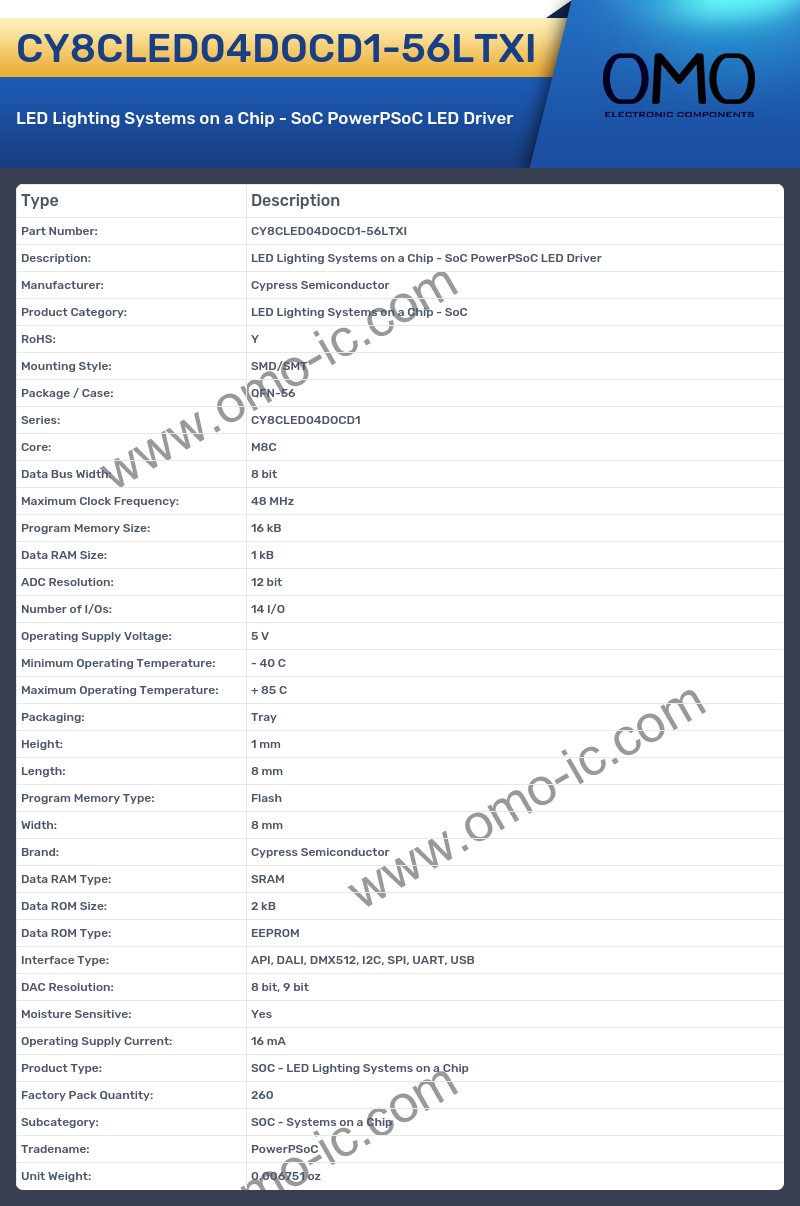

CY8CLED04DOCD1-56LTXI Specifications

• Manufacturer: Cypress Semiconductor
• Product Category: LED Lighting Systems on a Chip - SoC
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: QFN-56
• Series: CY8CLED04DOCD1
• Core: M8C
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 48 MHz
• Program Memory Size: 16 kB
• Data RAM Size: 1 kB
• ADC Resolution: 12 bit
• Number of I/Os: 14 I/O
• Operating Supply Voltage: 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 1 mm
• Length: 8 mm
• Program Memory Type: Flash
• Width: 8 mm
• Brand: Cypress Semiconductor
• Data RAM Type: SRAM
• Data ROM Size: 2 kB
• Data ROM Type: EEPROM
• Interface Type: API, DALI, DMX512, I2C, SPI, UART, USB
• DAC Resolution: 8 bit, 9 bit
• Moisture Sensitive: Yes
• Operating Supply Current: 16 mA
• Product Type: SOC - LED Lighting Systems on a Chip
• Factory Pack Quantity: 260
• Subcategory: SOC - Systems on a Chip
• Tradename: PowerPSoC
• Unit Weight: 0.006751 oz
