CSD87501L

CSD87501L Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. BGA-10 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 30 V 14 A continuous drain current Rds On value of 4.6 mOhms Gate-Source Threshold Voltage Range: 1.3 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.2 mm. 3.37 mm long The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 48 S, 48 S 712 ns, 712 ns fall time MOSFET product type Rise Time is 260 ns, 260 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 709 ns, 709 ns. The typical turn-on delay time is 164 ns, 164 ns. 1. 0.000109 oz of Unit Weight

CSD87501L Image

CSD87501L Specifications

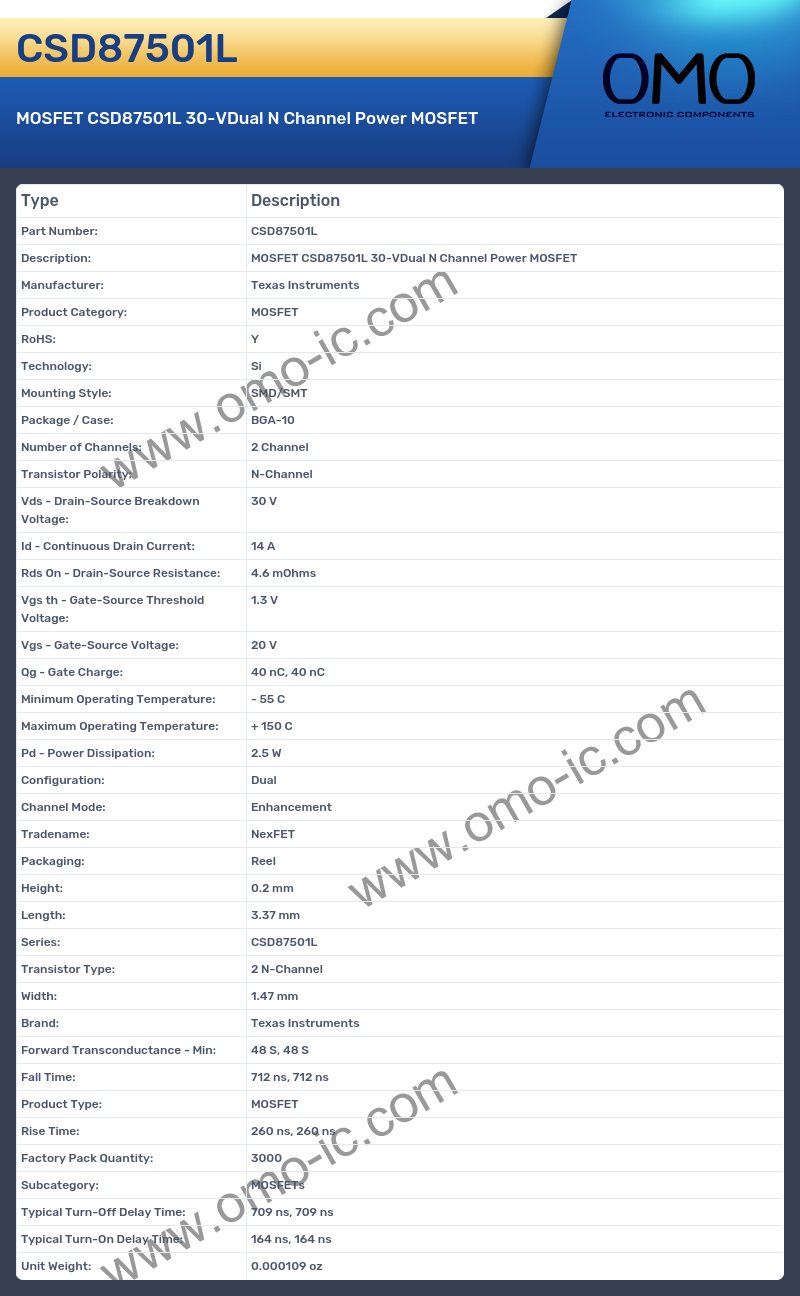

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: BGA-10
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 14 A
• Rds On - Drain-Source Resistance: 4.6 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.3 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 40 nC, 40 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.2 mm
• Length: 3.37 mm
• Series: CSD87501L
• Transistor Type: 2 N-Channel
• Width: 1.47 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 48 S, 48 S
• Fall Time: 712 ns, 712 ns
• Product Type: MOSFET
• Rise Time: 260 ns, 260 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 709 ns, 709 ns
• Typical Turn-On Delay Time: 164 ns, 164 ns
• Unit Weight: 0.000109 oz
