CSD87384M

CSD87384M Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PTAB-5 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 30 V 30 A continuous drain current Rds On value of 6.4 mOhms, 1.95 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 8 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.45 mm. 5 mm long The Transistor Type is 2 N-Channel. This device belongs to the Synchronous Buck NexFET Power Stage type. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 67 S, 240 S CSD87384MEVM-603 is a versatile development platform for hardware and software 7.6 ns, 8.2 ns fall time MOSFET product type Rise Time is 56 ns, 49 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 14 ns, 29 ns. The typical turn-on delay time is 8.7 ns, 17.5 ns.

CSD87384M Image

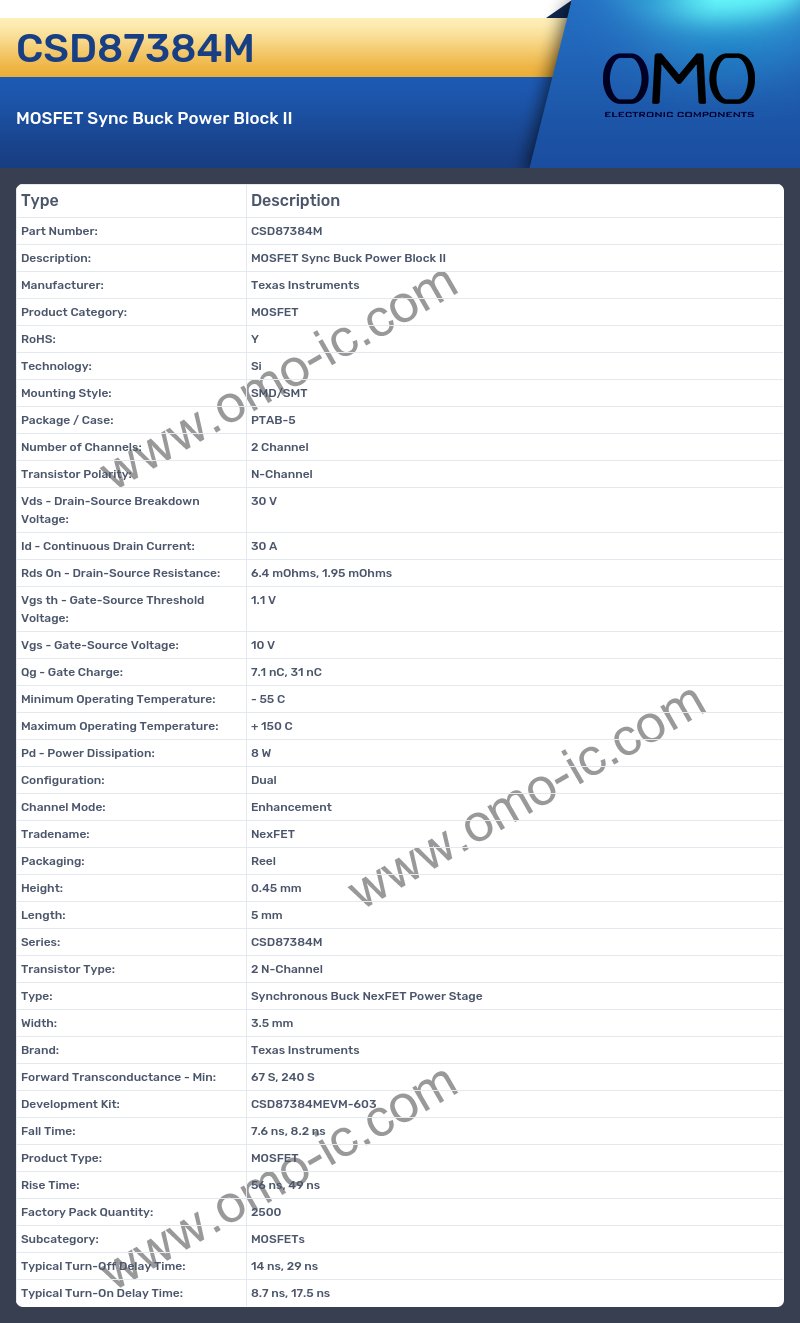

CSD87384M Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PTAB-5
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 30 A
• Rds On - Drain-Source Resistance: 6.4 mOhms, 1.95 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 7.1 nC, 31 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 8 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.45 mm
• Length: 5 mm
• Series: CSD87384M
• Transistor Type: 2 N-Channel
• Type: Synchronous Buck NexFET Power Stage
• Width: 3.5 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 67 S, 240 S
• Development Kit: CSD87384MEVM-603
• Fall Time: 7.6 ns, 8.2 ns
• Product Type: MOSFET
• Rise Time: 56 ns, 49 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 14 ns, 29 ns
• Typical Turn-On Delay Time: 8.7 ns, 17.5 ns
