CSD25201W15

CSD25201W15 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-9 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 4 A continuous drain current Rds On value of 33 mOhms Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.5 W This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.62 mm. 1.5 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 12 S 38 ns fall time MOSFET product type Rise Time is 11 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 51 ns. The typical turn-on delay time is 9.5 ns.

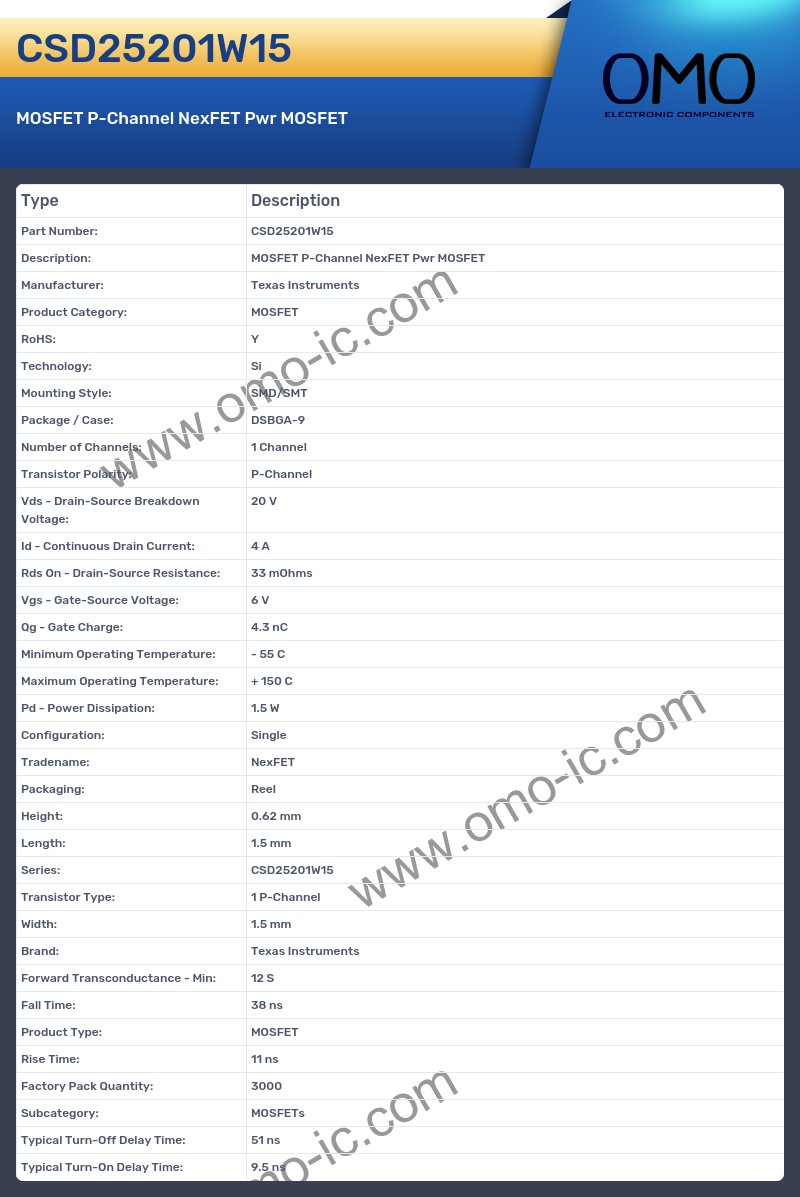

CSD25201W15 Image

CSD25201W15 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-9
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 4 A
• Rds On - Drain-Source Resistance: 33 mOhms
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 4.3 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.5 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 0.62 mm
• Length: 1.5 mm
• Series: CSD25201W15
• Transistor Type: 1 P-Channel
• Width: 1.5 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 12 S
• Fall Time: 38 ns
• Product Type: MOSFET
• Rise Time: 11 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 51 ns
• Typical Turn-On Delay Time: 9.5 ns
