CD4075BPW

CD4075BPW Overview

This product is manufactured by Texas Instruments. Single-Function Gate OR logic function The product uses the CD4000 logic family. The product boasts a whopping 3 Gate gates for unparalleled processing power. This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA The propagation delay time is 120 ns. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a OR The height of the product is 1.15 mm. CMOS input type 5 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics 3-INPUT OR. Number of bits: 3 bit 10 V operating supply voltage range Logic Gates product type 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

CD4075BPW Image

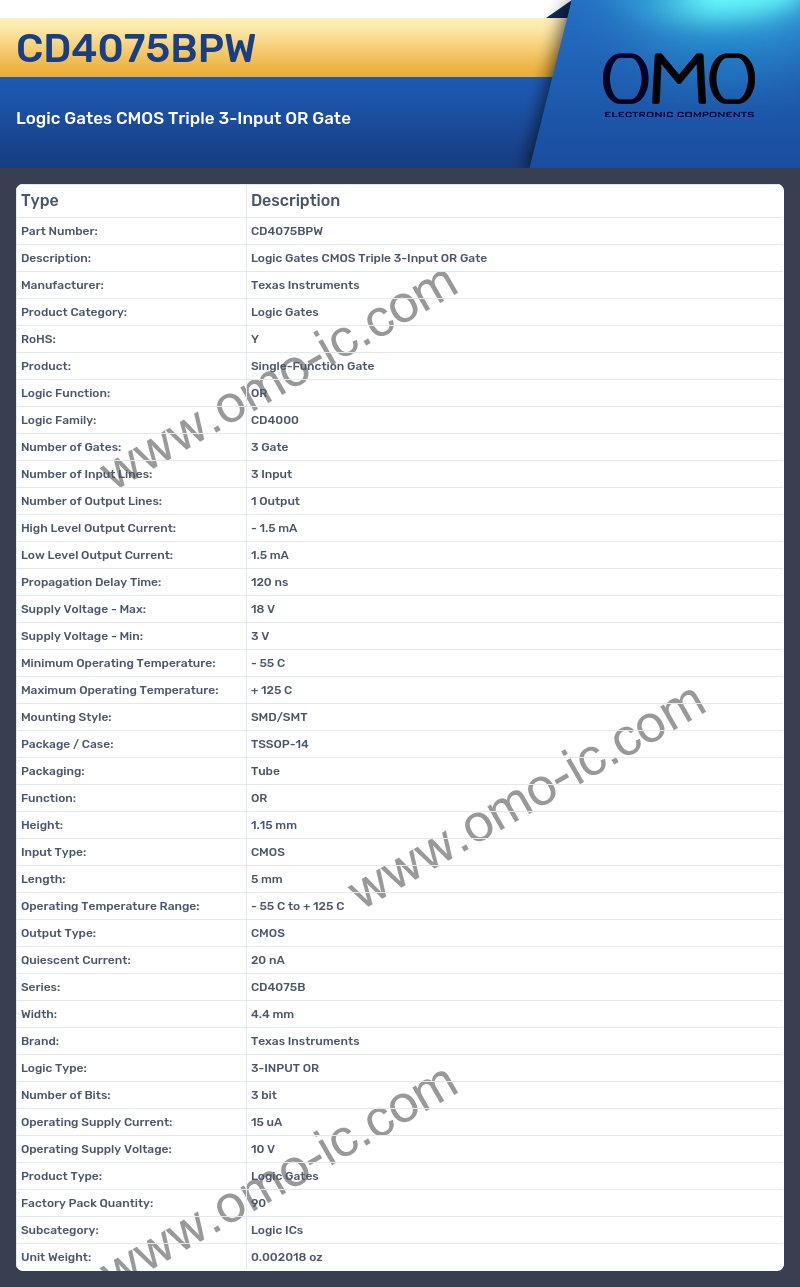

CD4075BPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: OR
• Logic Family: CD4000
• Number of Gates: 3 Gate
• Number of Input Lines: 3 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Propagation Delay Time: 120 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: OR
• Height: 1.15 mm
• Input Type: CMOS
• Length: 5 mm
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 20 nA
• Series: CD4075B
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: 3-INPUT OR
• Number of Bits: 3 bit
• Operating Supply Current: 15 uA
• Operating Supply Voltage: 10 V
• Product Type: Logic Gates
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
