ADS5545IRGZ25

ADS5545IRGZ25 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VQFN-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 170 MS/s. Differential input type Interface Type: Parallel, Serial Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The output type is CMOS/LVDS. Analog to Digital Converters This device belongs to the With DDR type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. ADS5545EVM is a versatile development platform for hardware and software The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 1 %/FSR is 0.2%. INL is within 3 LSB Yes regarding Moisture Sensitivity 1.1 W ADCs - Analog to Digital Converters product type 25 of 100 Data Converter ICs as subcategory THD is as low as 68 dBc.

ADS5545IRGZ25 Image

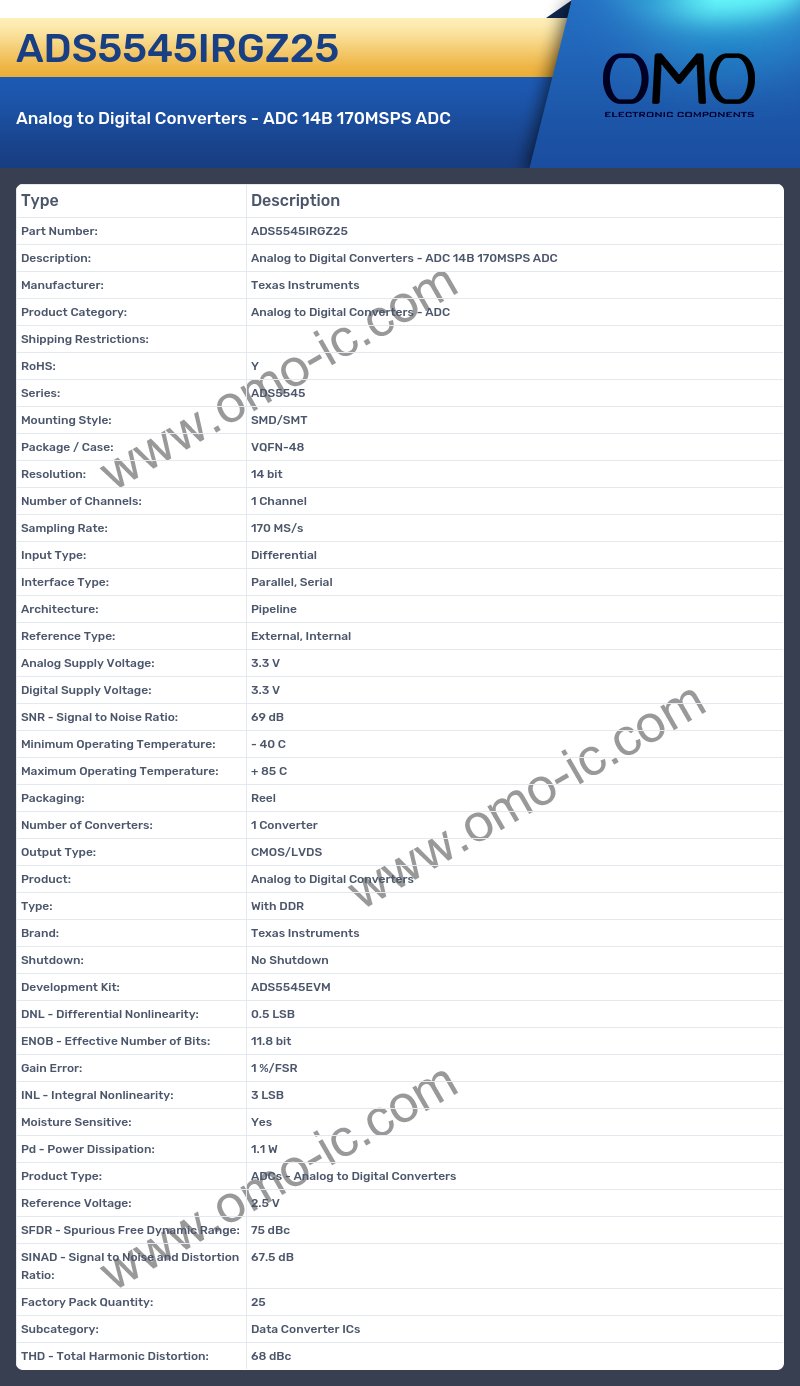

ADS5545IRGZ25 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• Shipping Restrictions:
• RoHS: Y
• Series: ADS5545
• Mounting Style: SMD/SMT
• Package / Case: VQFN-48
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 170 MS/s
• Input Type: Differential
• Interface Type: Parallel, Serial
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3.3 V
• SNR - Signal to Noise Ratio: 69 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Number of Converters: 1 Converter
• Output Type: CMOS/LVDS
• Product: Analog to Digital Converters
• Type: With DDR
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: ADS5545EVM
• DNL - Differential Nonlinearity: 0.5 LSB
• ENOB - Effective Number of Bits: 11.8 bit
• Gain Error: 1 %/FSR
• INL - Integral Nonlinearity: 3 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 1.1 W
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: 75 dBc
• SINAD - Signal to Noise and Distortion Ratio: 67.5 dB
• Factory Pack Quantity: 25
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: 68 dBc
