ADS5403IZAYR

ADS5403IZAYR Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-72 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 170 MS/s. Differential input type Interface Type: 3-Wire, JESD204, SPI Pipeline architecture Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.83 mm. 1.25 V Input Voltage 10 mm long The output type is LVDS. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The 0.6 LSB, ensuring accurate and precise analog-to-digital conversion. - 2.8 % FSR to + 4.7 % FSR is 0.2%. INL is within 0.9 LSB 1.8 V operating supply voltage range 1.215 W ADCs - Analog to Digital Converters product type 2000 of 100 Data Converter ICs as subcategory

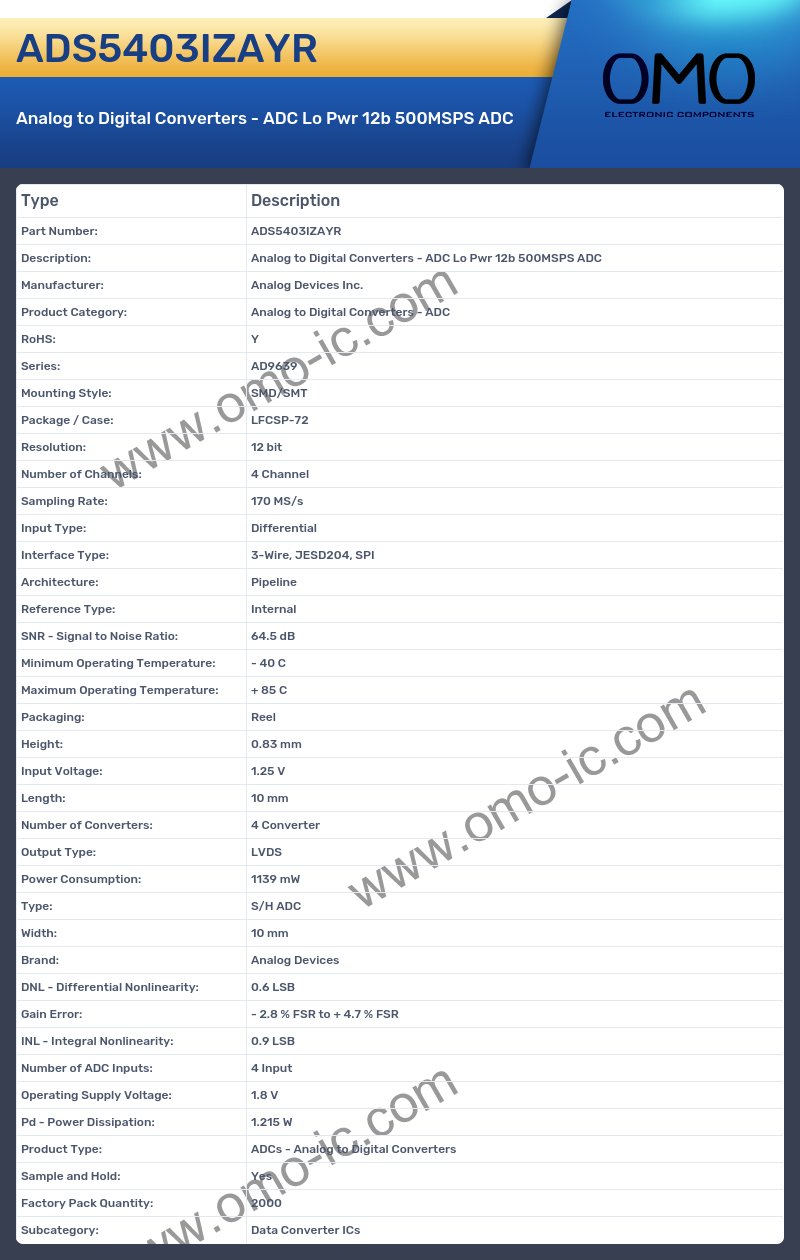

ADS5403IZAYR Image

ADS5403IZAYR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9639
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-72
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 170 MS/s
• Input Type: Differential
• Interface Type: 3-Wire, JESD204, SPI
• Architecture: Pipeline
• Reference Type: Internal
• SNR - Signal to Noise Ratio: 64.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.83 mm
• Input Voltage: 1.25 V
• Length: 10 mm
• Number of Converters: 4 Converter
• Output Type: LVDS
• Power Consumption: 1139 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: 0.6 LSB
• Gain Error: - 2.8 % FSR to + 4.7 % FSR
• INL - Integral Nonlinearity: 0.9 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 1.8 V
• Pd - Power Dissipation: 1.215 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 2000
• Subcategory: Data Converter ICs
