ADMV1014-EVALZ

ADMV1014-EVALZ Overview

This product is manufactured by Analog Devices Inc.. Down Converters This product operates at 24 GHz to 44 GHz RF frequency range. The IF Frequency range is 0.8 GHz to 6 GHz. LO Frequency range is 5.4 GHz to 10.25 GHz. 17 dB is 11.5 dB. The - 11 dBm is 17 dBm. 3.3 V operating supply voltage range The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LGA-32 package/case type is utilized by this product. Analog Devices is a trusted brand for quality electronics The minimum operating temperature of this product is - 40 C. The - 1 dBm value is 32 dBm. 2.9 W Up-Down Converters product type 1 of 100 Wireless & RF Integrated Circuits as subcategory

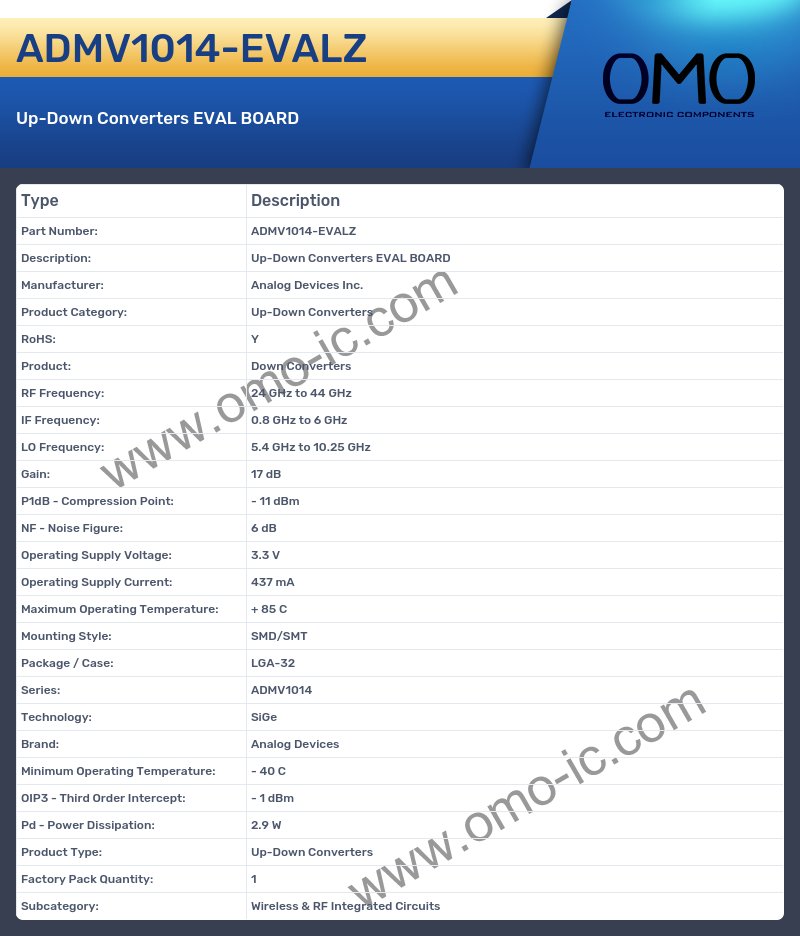

ADMV1014-EVALZ Image

ADMV1014-EVALZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Up-Down Converters
• RoHS: Y
• Product: Down Converters
• RF Frequency: 24 GHz to 44 GHz
• IF Frequency: 0.8 GHz to 6 GHz
• LO Frequency: 5.4 GHz to 10.25 GHz
• Gain: 17 dB
• P1dB - Compression Point: - 11 dBm
• NF - Noise Figure: 6 dB
• Operating Supply Voltage: 3.3 V
• Operating Supply Current: 437 mA
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LGA-32
• Series: ADMV1014
• Technology: SiGe
• Brand: Analog Devices
• Minimum Operating Temperature: - 40 C
• OIP3 - Third Order Intercept: - 1 dBm
• Pd - Power Dissipation: 2.9 W
• Product Type: Up-Down Converters
• Factory Pack Quantity: 1
• Subcategory: Wireless & RF Integrated Circuits
