ADL5542ACPZ-R7

ADL5542ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-8 package/case type is utilized by this product. This device belongs to the Gain Block Amplifier type. The 6.8 dBm is 17 dBm. 12.7 dB is 11.5 dB. 5 V operating supply voltage range The 5800 MHz range is from 5000 MHz to 8000 MHz. The 24.2 dBm value is 32 dBm. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics This product is equipped with 1 Channel for efficient performance. ADL5542-EVALZ is a versatile development platform for hardware and software The - 15 dB value is 14 dB. The product has an - 22 dB rating of 25 dB. Yes regarding Moisture Sensitivity 650 mW RF Amplifier product type 1500 of 100 Wireless & RF Integrated Circuits as subcategory Supply Voltage - Max: 5 V Supply Voltage - Min: 4.5 V

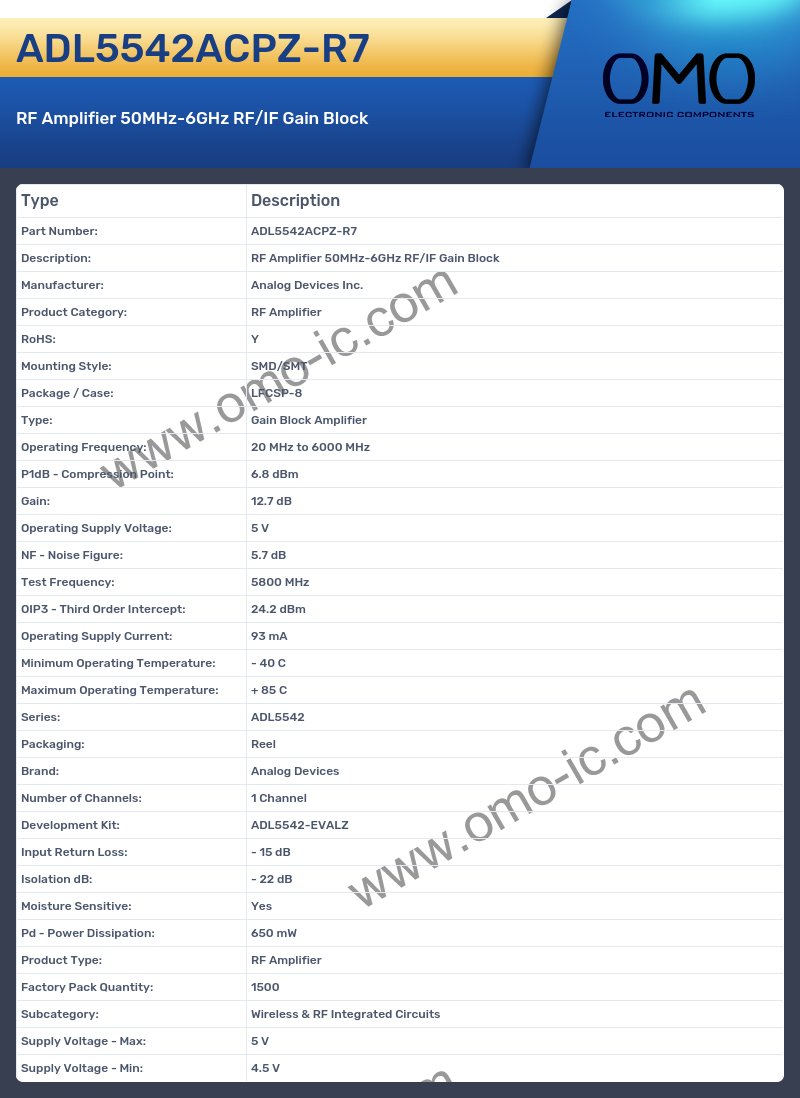

ADL5542ACPZ-R7 Image

ADL5542ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Amplifier
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-8
• Type: Gain Block Amplifier
• Operating Frequency: 20 MHz to 6000 MHz
• P1dB - Compression Point: 6.8 dBm
• Gain: 12.7 dB
• Operating Supply Voltage: 5 V
• NF - Noise Figure: 5.7 dB
• Test Frequency: 5800 MHz
• OIP3 - Third Order Intercept: 24.2 dBm
• Operating Supply Current: 93 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADL5542
• Packaging: Reel
• Brand: Analog Devices
• Number of Channels: 1 Channel
• Development Kit: ADL5542-EVALZ
• Input Return Loss: - 15 dB
• Isolation dB: - 22 dB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 650 mW
• Product Type: RF Amplifier
• Factory Pack Quantity: 1500
• Subcategory: Wireless & RF Integrated Circuits
• Supply Voltage - Max: 5 V
• Supply Voltage - Min: 4.5 V
