ADG452BRZ

ADG452BRZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPST configuration. Maximum switch voltage is 15 V Our product has a maximum 180 ns. Our product has a maximum 140 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 10 mm (Max) long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 500 nA 1. The maximum dual supply voltage is +/- 20 V. +/- 4.5 V minimum dual supply voltage 17.5 uW Analog Switch ICs product type 48 of 100 Switch ICs as subcategory Supply Voltage - Max: 13.2 V Supply Voltage - Min: 5 V Maximum continuous current: 100 mA 1. 0.023492 oz of Unit Weight

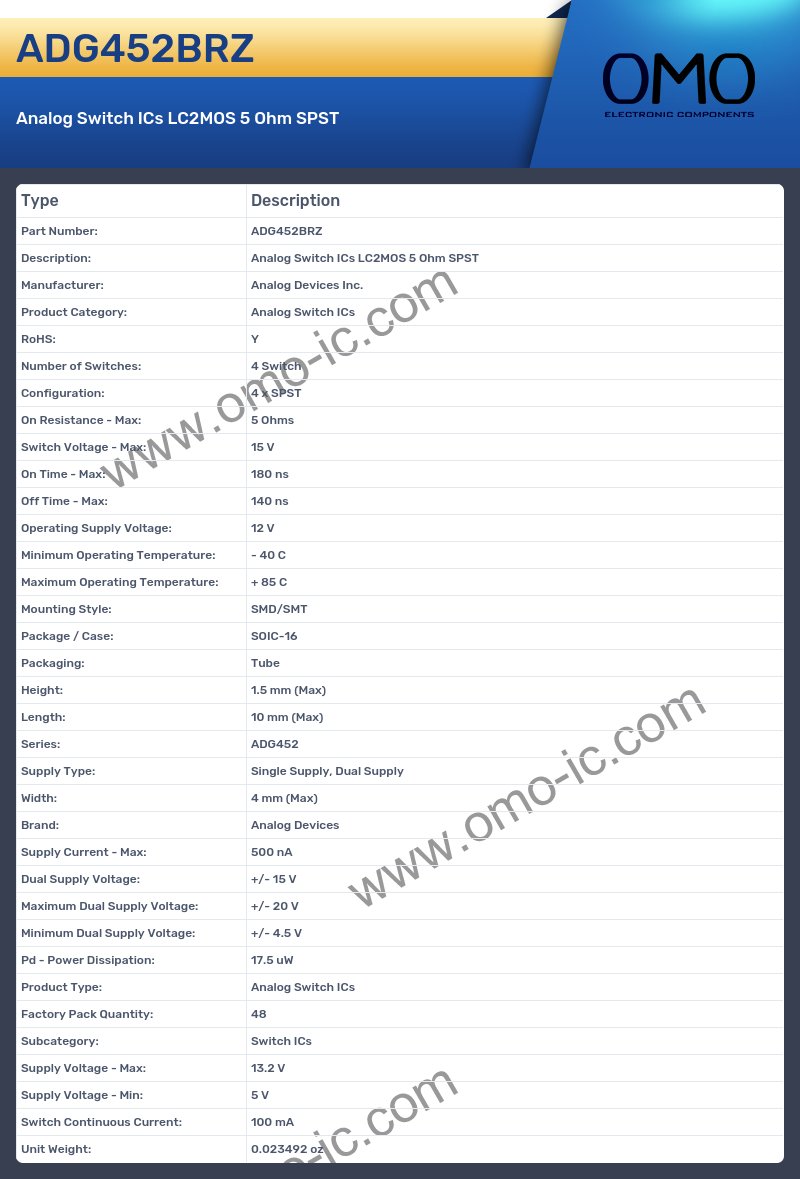

ADG452BRZ Image

ADG452BRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 4 Switch
• Configuration: 4 x SPST
• On Resistance - Max: 5 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 180 ns
• Off Time - Max: 140 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 10 mm (Max)
• Series: ADG452
• Supply Type: Single Supply, Dual Supply
• Width: 4 mm (Max)
• Brand: Analog Devices
• Supply Current - Max: 500 nA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 20 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 17.5 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 48
• Subcategory: Switch ICs
• Supply Voltage - Max: 13.2 V
• Supply Voltage - Min: 5 V
• Switch Continuous Current: 100 mA
• Unit Weight: 0.023492 oz
