ADG1234YRUZ

ADG1234YRUZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPDT configuration. Maximum switch voltage is 15 V Our product has a maximum 140 ns. Our product has a maximum 45 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm (Max). 6.5 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 475 uA 1. The maximum dual supply voltage is +/- 16.5 V. +/- 5 V minimum dual supply voltage 6.02 mW Analog Switch ICs product type 75 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 5 V Maximum continuous current: 24 mA 1. 0.006102 oz of Unit Weight

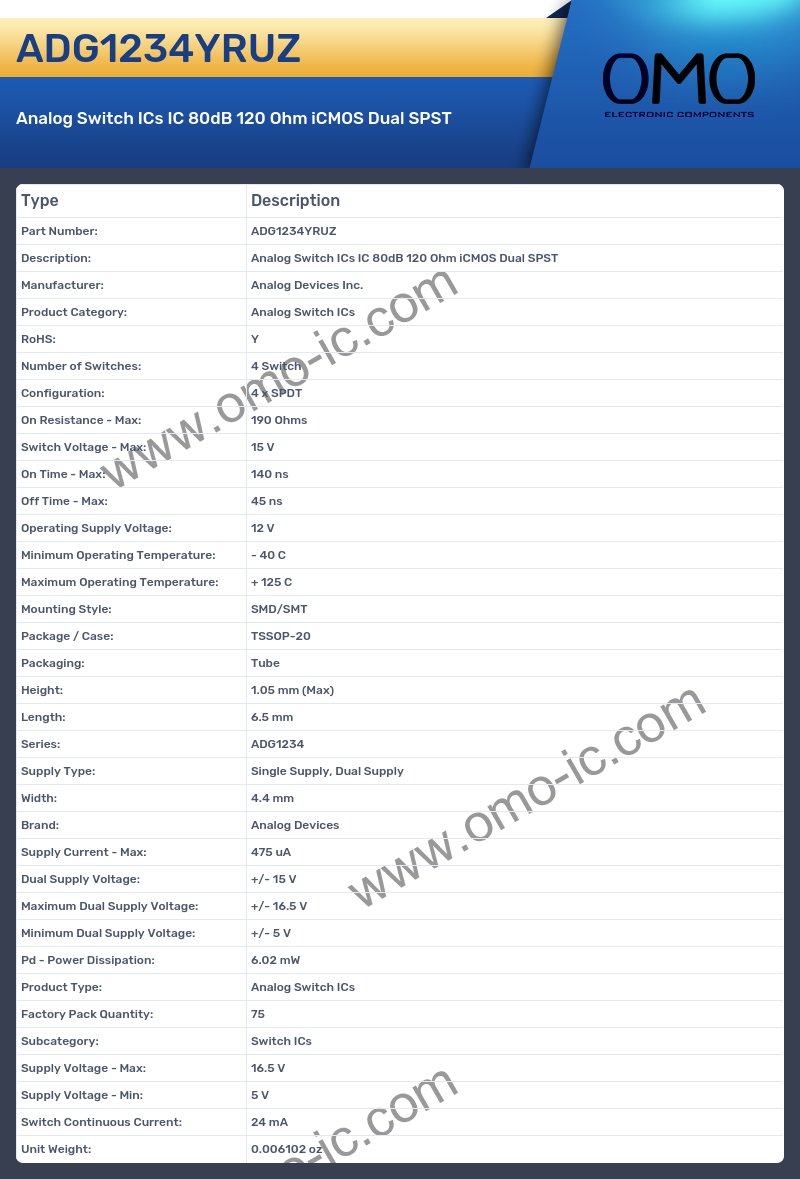

ADG1234YRUZ Image

ADG1234YRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 4 Switch
• Configuration: 4 x SPDT
• On Resistance - Max: 190 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 140 ns
• Off Time - Max: 45 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Height: 1.05 mm (Max)
• Length: 6.5 mm
• Series: ADG1234
• Supply Type: Single Supply, Dual Supply
• Width: 4.4 mm
• Brand: Analog Devices
• Supply Current - Max: 475 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 5 V
• Pd - Power Dissipation: 6.02 mW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 75
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 5 V
• Switch Continuous Current: 24 mA
• Unit Weight: 0.006102 oz
