AD9286BCPZ-500

AD9286BCPZ-500 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-48 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 500 MS/s. Differential/Single-Ended input type Interface Type: SPI Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.83 mm. 1.2 Vp-p Input Voltage 7 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics AD9286-500EBZ is a versatile development platform for hardware and software The +/- 0.4 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.8 %FSR is 0.2%. INL is within +/- 0.3 LSB Yes regarding Moisture Sensitivity 1.8 V operating supply voltage range 315 mW ADCs - Analog to Digital Converters product type 260 of 100 Data Converter ICs as subcategory 1. 0.240004 oz of Unit Weight

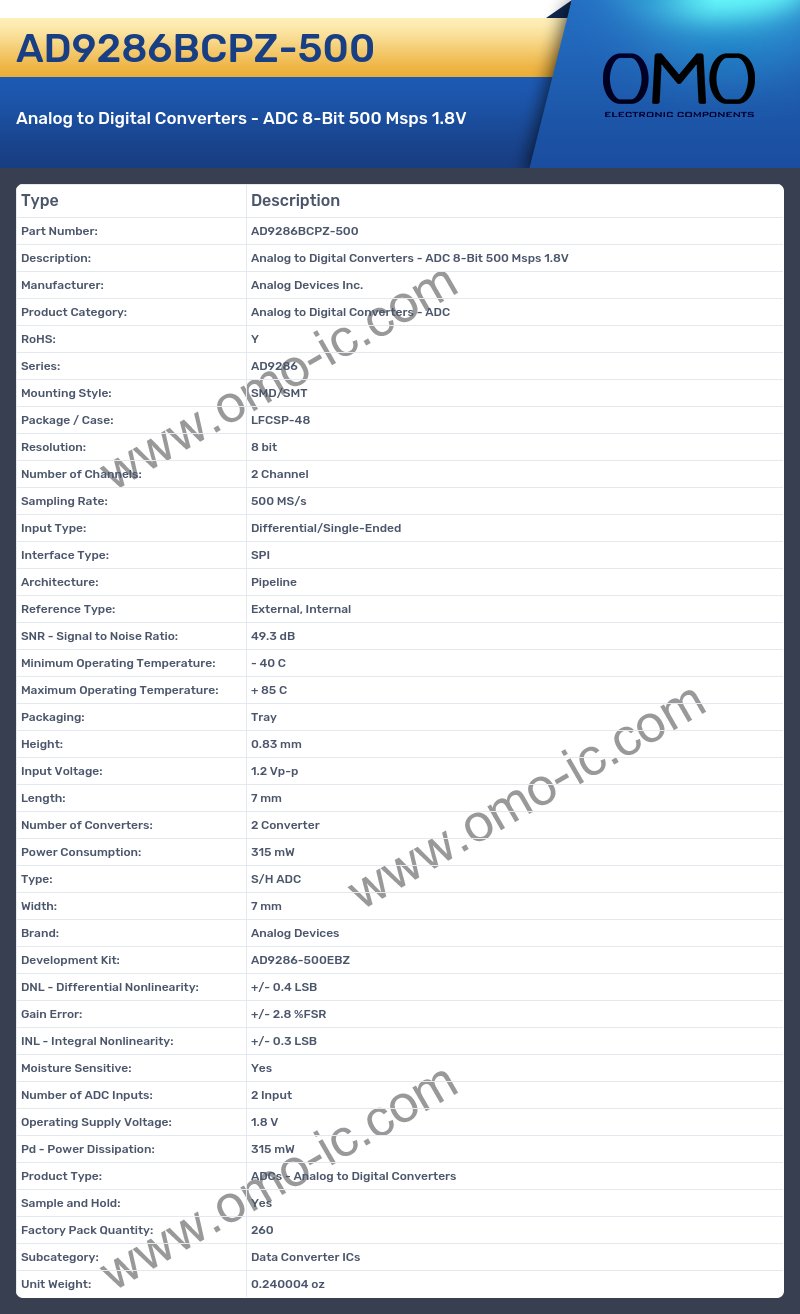

AD9286BCPZ-500 Image

AD9286BCPZ-500 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9286
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-48
• Resolution: 8 bit
• Number of Channels: 2 Channel
• Sampling Rate: 500 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: SPI
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 49.3 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.83 mm
• Input Voltage: 1.2 Vp-p
• Length: 7 mm
• Number of Converters: 2 Converter
• Power Consumption: 315 mW
• Type: S/H ADC
• Width: 7 mm
• Brand: Analog Devices
• Development Kit: AD9286-500EBZ
• DNL - Differential Nonlinearity: +/- 0.4 LSB
• Gain Error: +/- 2.8 %FSR
• INL - Integral Nonlinearity: +/- 0.3 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 1.8 V
• Pd - Power Dissipation: 315 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 260
• Subcategory: Data Converter ICs
• Unit Weight: 0.240004 oz
