AD820ANZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 25 pA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.3 mm. 9.27 mm long The output type is Rail to Rail Output. Precision Amplifiers This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 4 V 1. The maximum dual supply voltage is 15 V. 2.5 V minimum dual supply voltage 5 V to 30 V operating supply voltage range 1.6 W Precision Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD820ANZ Image

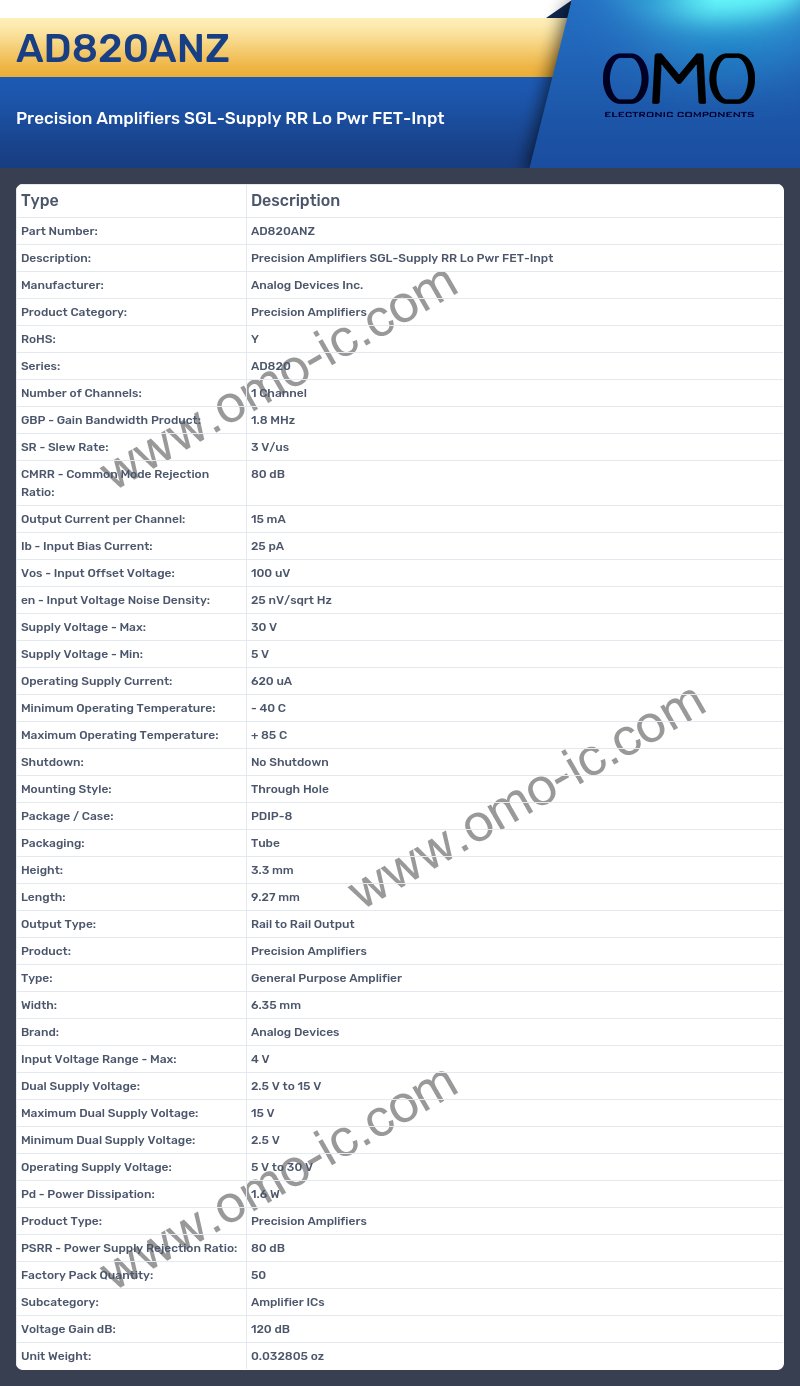

AD820ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD820
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1.8 MHz
• SR - Slew Rate: 3 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Output Current per Channel: 15 mA
• Ib - Input Bias Current: 25 pA
• Vos - Input Offset Voltage: 100 uV
• en - Input Voltage Noise Density: 25 nV/sqrt Hz
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 5 V
• Operating Supply Current: 620 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Height: 3.3 mm
• Length: 9.27 mm
• Output Type: Rail to Rail Output
• Product: Precision Amplifiers
• Type: General Purpose Amplifier
• Width: 6.35 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 4 V
• Dual Supply Voltage: 2.5 V to 15 V
• Maximum Dual Supply Voltage: 15 V
• Minimum Dual Supply Voltage: 2.5 V
• Operating Supply Voltage: 5 V to 30 V
• Pd - Power Dissipation: 1.6 W
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 120 dB
• Unit Weight: 0.032805 oz
