AD8014ARZ

AD8014ARZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 57 dB of 50 dB, ensuring reliable signal acquisition. This product has an 5 uA of 5 uA for precise signal processing. Supply Voltage - Max: 12 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Current Feedback. The height of the product is 1.75 mm. 5 mm long Operational Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Current Feedback Topology Bandwidth at -3 dB is 400 MHz AD8014AR-EBZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 6 V. +/- 2.25 V minimum dual supply voltage 4.5 V to 12 V operating supply voltage range 750 mW Op Amps - High Speed Operational Amplifiers product type This product has a 58 dB of 50 dB, providing reliable power supply noise rejection. 24 ns settling time 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

AD8014ARZ Image

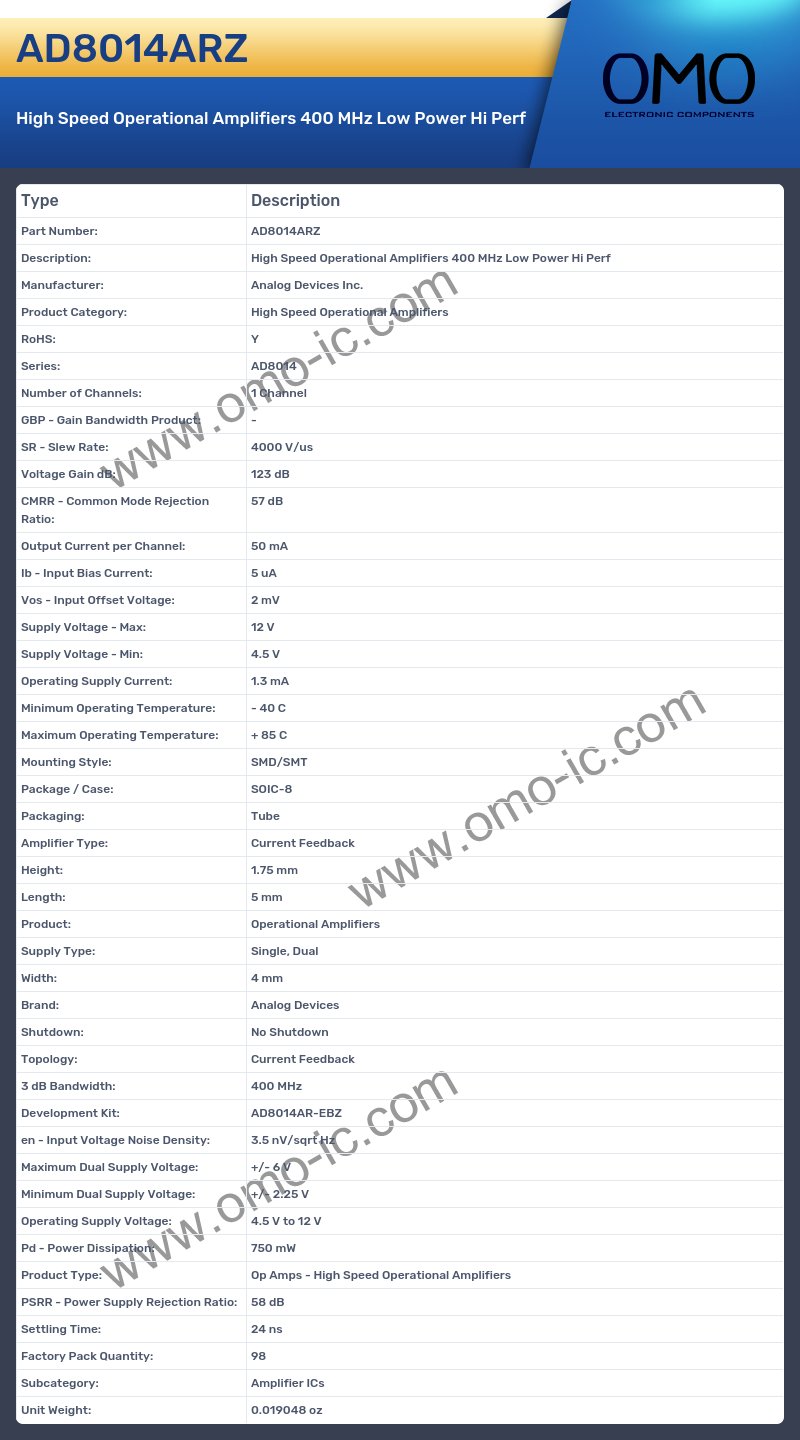

AD8014ARZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: High Speed Operational Amplifiers
• RoHS: Y
• Series: AD8014
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 4000 V/us
• Voltage Gain dB: 123 dB
• CMRR - Common Mode Rejection Ratio: 57 dB
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 5 uA
• Vos - Input Offset Voltage: 2 mV
• Supply Voltage - Max: 12 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 1.3 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Current Feedback
• Height: 1.75 mm
• Length: 5 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 4 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• Topology: Current Feedback
• 3 dB Bandwidth: 400 MHz
• Development Kit: AD8014AR-EBZ
• en - Input Voltage Noise Density: 3.5 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Operating Supply Voltage: 4.5 V to 12 V
• Pd - Power Dissipation: 750 mW
• Product Type: Op Amps - High Speed Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 58 dB
• Settling Time: 24 ns
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Unit Weight: 0.019048 oz
