AD8014ARTZ-REEL7

AD8014ARTZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 57 dB of 50 dB, ensuring reliable signal acquisition. This product has an 5 uA of 5 uA for precise signal processing. Supply Voltage - Max: 12 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOT-23-5 package/case type is utilized by this product. Reel packaging for easy dispensing The amplifier type is Current Feedback. The height of the product is 1.45 mm. 2.9 mm long Operational Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Current Feedback Topology Bandwidth at -3 dB is 400 MHz 1. The maximum dual supply voltage is +/- 6 V. +/- 2.25 V minimum dual supply voltage 4.5 V to 12 V operating supply voltage range 500 mW (1/2 W) Op Amps - High Speed Operational Amplifiers product type This product has a 58 dB of 50 dB, providing reliable power supply noise rejection. 24 ns settling time 3000 of 100 Amplifier ICs as subcategory 1. 0.000222 oz of Unit Weight

AD8014ARTZ-REEL7 Image

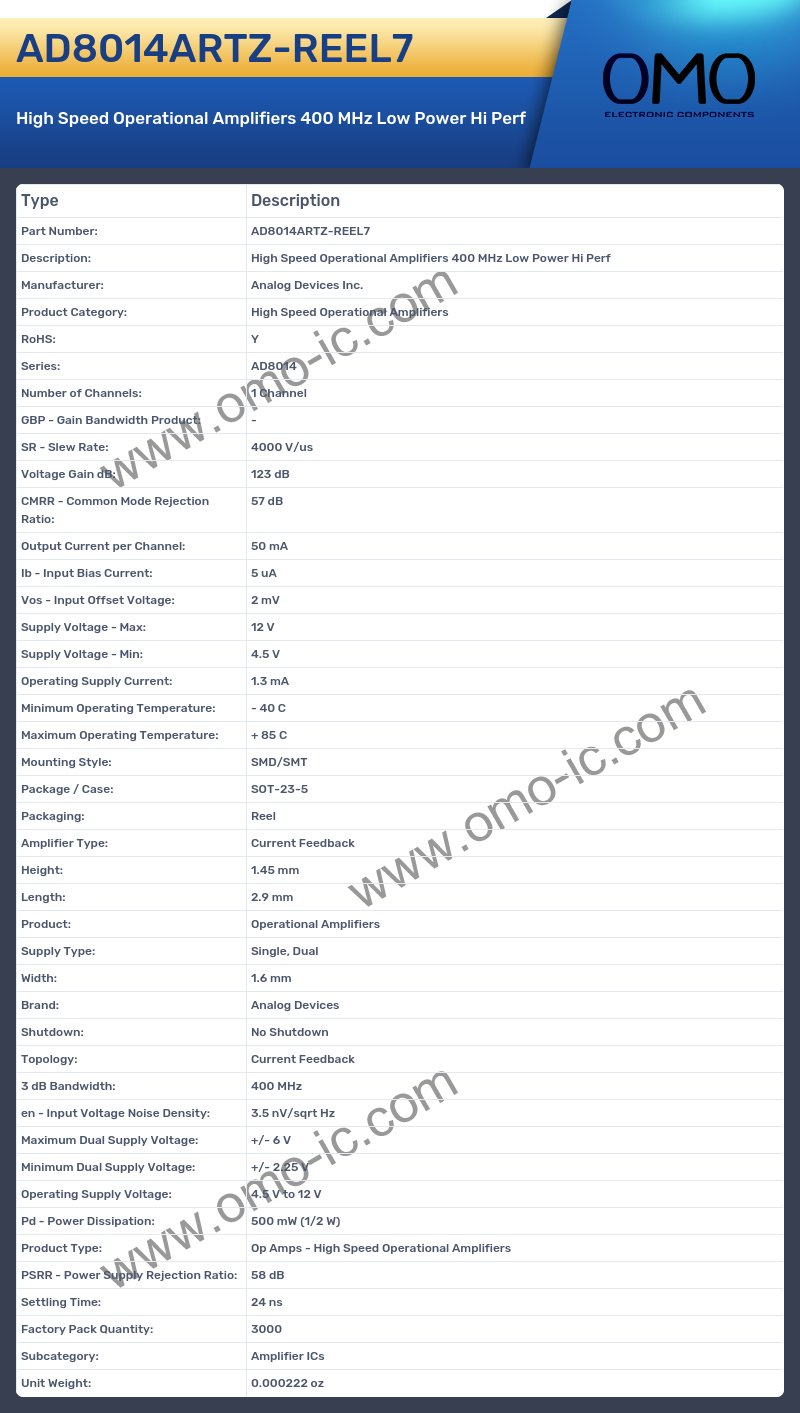

AD8014ARTZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: High Speed Operational Amplifiers
• RoHS: Y
• Series: AD8014
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 4000 V/us
• Voltage Gain dB: 123 dB
• CMRR - Common Mode Rejection Ratio: 57 dB
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 5 uA
• Vos - Input Offset Voltage: 2 mV
• Supply Voltage - Max: 12 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 1.3 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-5
• Packaging: Reel
• Amplifier Type: Current Feedback
• Height: 1.45 mm
• Length: 2.9 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 1.6 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• Topology: Current Feedback
• 3 dB Bandwidth: 400 MHz
• en - Input Voltage Noise Density: 3.5 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Operating Supply Voltage: 4.5 V to 12 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - High Speed Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 58 dB
• Settling Time: 24 ns
• Factory Pack Quantity: 3000
• Subcategory: Amplifier ICs
• Unit Weight: 0.000222 oz
