AD7982BCPZ-RL

AD7982BCPZ-RL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.73 mm. +/- 5 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 0.85 LSB/1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 0.023 %FSR is 0.2%. INL is within +/- 2 LSB 2.5 V operating supply voltage range 8.6 mW ADCs - Analog to Digital Converters product type 5000 of 100 Data Converter ICs as subcategory

AD7982BCPZ-RL Image

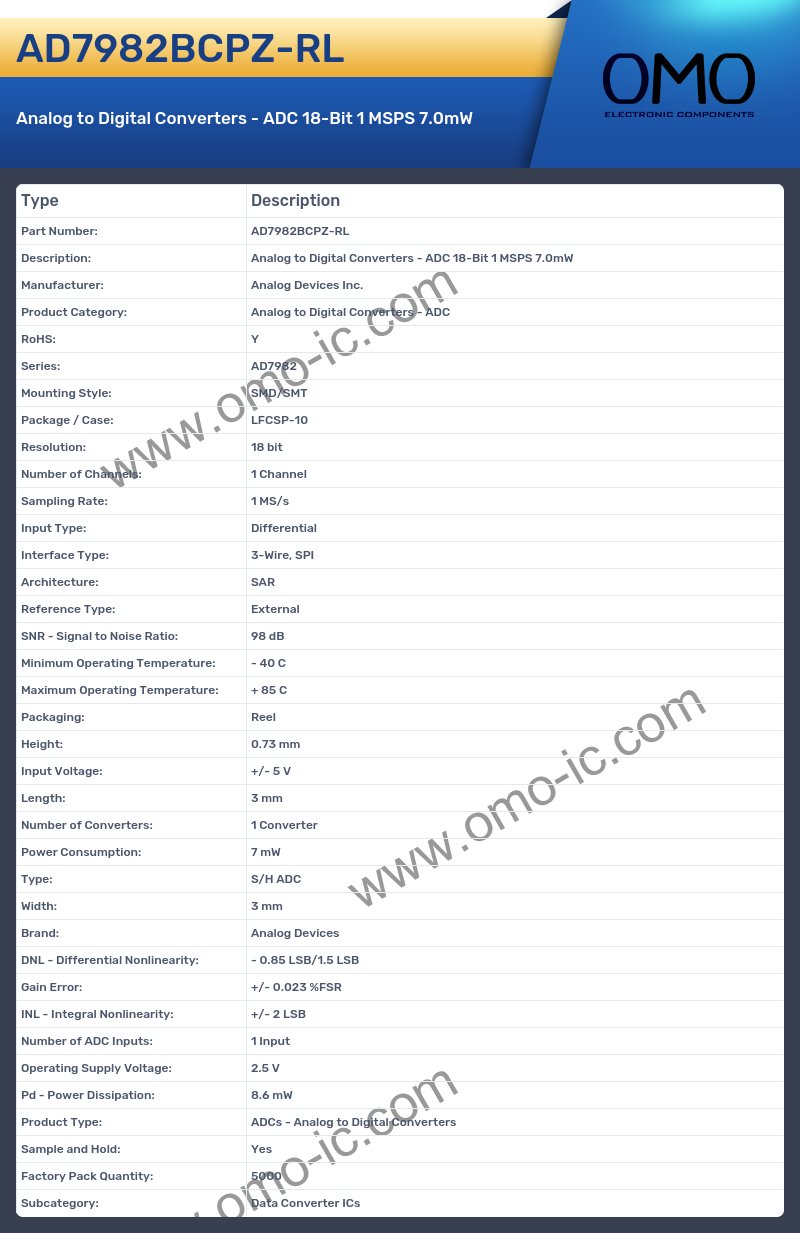

AD7982BCPZ-RL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7982
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-10
• Resolution: 18 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 98 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.73 mm
• Input Voltage: +/- 5 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Power Consumption: 7 mW
• Type: S/H ADC
• Width: 3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 0.85 LSB/1.5 LSB
• Gain Error: +/- 0.023 %FSR
• INL - Integral Nonlinearity: +/- 2 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 2.5 V
• Pd - Power Dissipation: 8.6 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 5000
• Subcategory: Data Converter ICs
