AD7945BR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1.7 MS/s. This product is equipped with 1 Channel for efficient performance. 5 us settling time Interface Type: Parallel Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. 13 mm long The output type is Current. This device belongs to the Precision type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 4.5 V to 5.5 V operating supply voltage range 450 mW DACs - Digital to Analog Converters product type 37 of 100 Data Converter ICs as subcategory 1. 0.028254 oz of Unit Weight

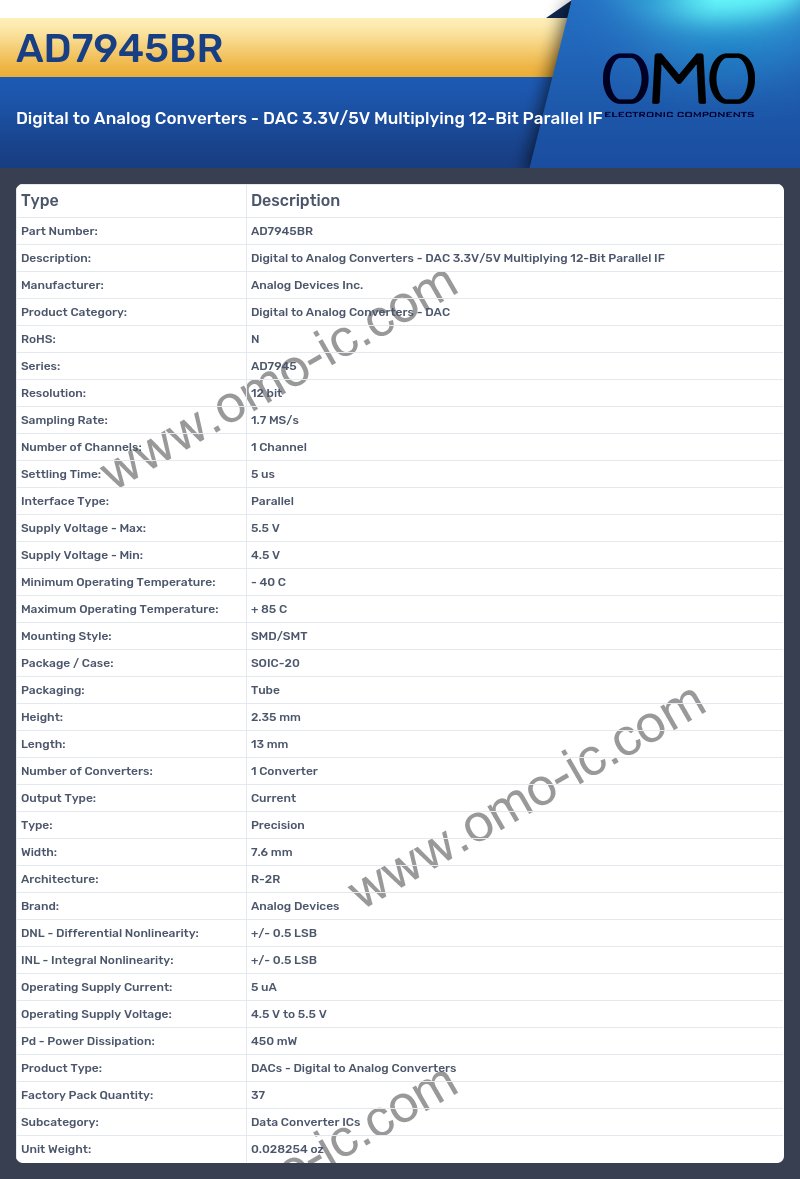

AD7945BR Image

AD7945BR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7945
• Resolution: 12 bit
• Sampling Rate: 1.7 MS/s
• Number of Channels: 1 Channel
• Settling Time: 5 us
• Interface Type: Parallel
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Packaging: Tube
• Height: 2.35 mm
• Length: 13 mm
• Number of Converters: 1 Converter
• Output Type: Current
• Type: Precision
• Width: 7.6 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Current: 5 uA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Pd - Power Dissipation: 450 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 37
• Subcategory: Data Converter ICs
• Unit Weight: 0.028254 oz
