AD7916BRMZ

AD7916BRMZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. MSOP-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 500 kS/s. Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. This product requires an 2.4 V to 5.1 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The output type is Digital. This device belongs to the ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-AD7916SDZ is a versatile development platform for hardware and software The 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 1 LSB 4.5 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 118.5 dB. 1. 0.005051 oz of Unit Weight

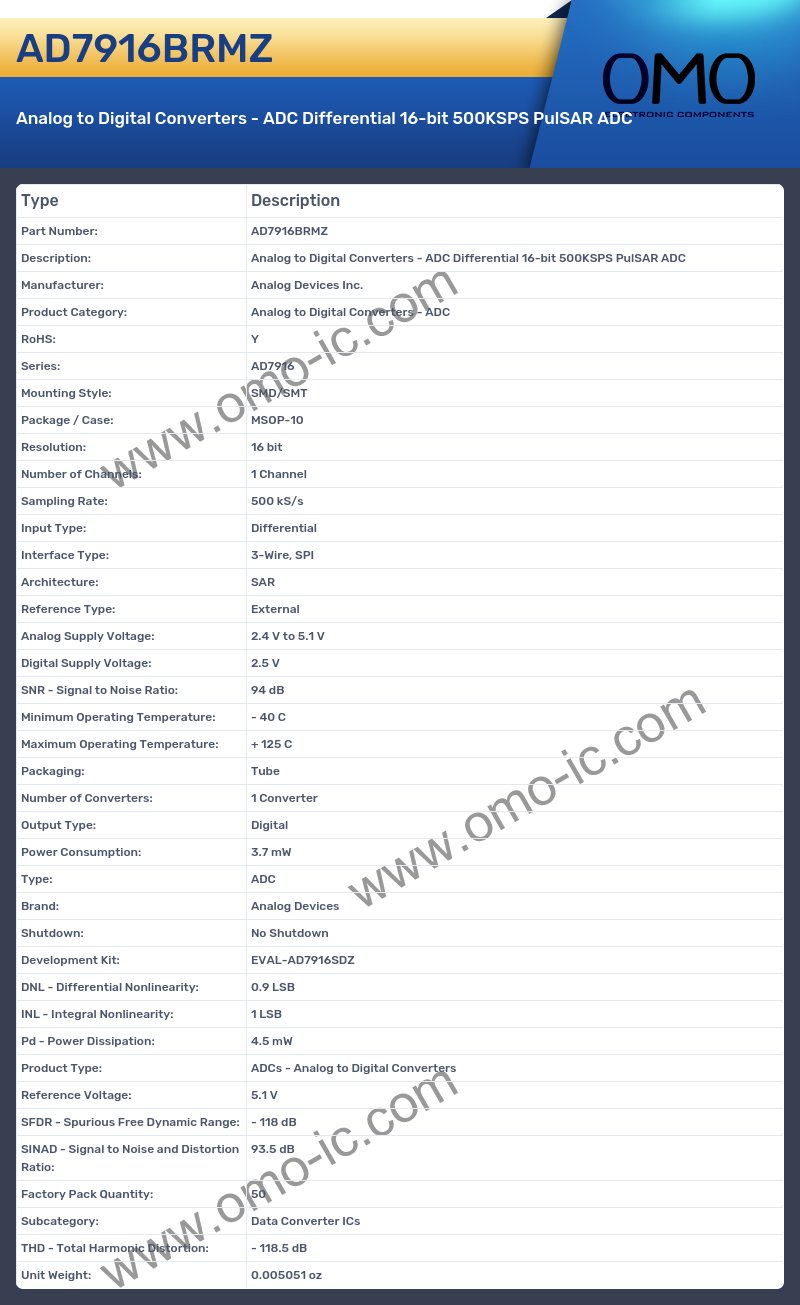

AD7916BRMZ Image

AD7916BRMZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7916
• Mounting Style: SMD/SMT
• Package / Case: MSOP-10
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 500 kS/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.4 V to 5.1 V
• Digital Supply Voltage: 2.5 V
• SNR - Signal to Noise Ratio: 94 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Number of Converters: 1 Converter
• Output Type: Digital
• Power Consumption: 3.7 mW
• Type: ADC
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: EVAL-AD7916SDZ
• DNL - Differential Nonlinearity: 0.9 LSB
• INL - Integral Nonlinearity: 1 LSB
• Pd - Power Dissipation: 4.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 5.1 V
• SFDR - Spurious Free Dynamic Range: - 118 dB
• SINAD - Signal to Noise and Distortion Ratio: 93.5 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 118.5 dB
• Unit Weight: 0.005051 oz
