AD7866ARU Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.05 mm. 2.5 V/5 V Input Voltage 6.5 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-CN0341-SDPZ is a versatile development platform for hardware and software The - 0.95 LSB/1.25 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.5 LSB is 0.2%. INL is within +/- 1.5 LSB 5 V operating supply voltage range 24 mW ADCs - Analog to Digital Converters product type 75 of 100 Data Converter ICs as subcategory 1. 0.006737 oz of Unit Weight

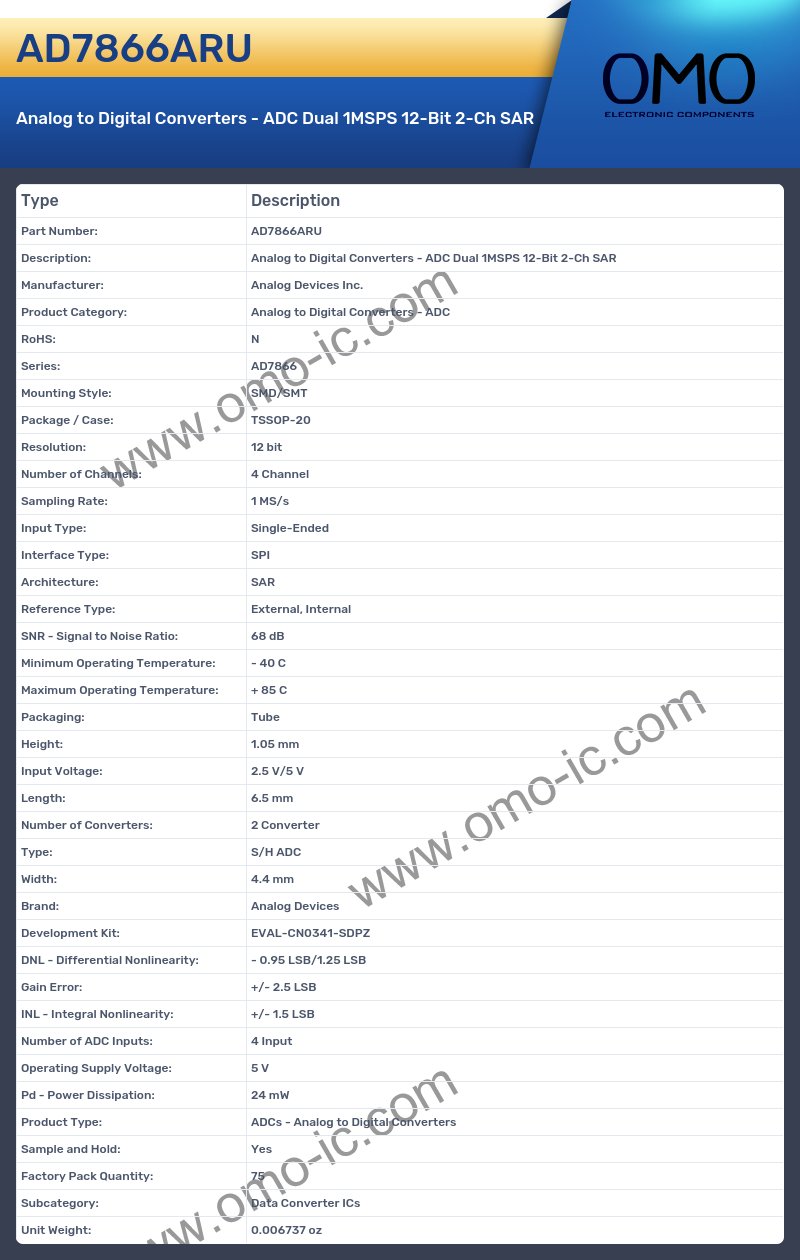

AD7866ARU Image

AD7866ARU Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7866
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 68 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.05 mm
• Input Voltage: 2.5 V/5 V
• Length: 6.5 mm
• Number of Converters: 2 Converter
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Analog Devices
• Development Kit: EVAL-CN0341-SDPZ
• DNL - Differential Nonlinearity: - 0.95 LSB/1.25 LSB
• Gain Error: +/- 2.5 LSB
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 24 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 75
• Subcategory: Data Converter ICs
• Unit Weight: 0.006737 oz
