AD7785BRUZ

AD7785BRUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. This product is equipped with 3 Channel for efficient performance. The sampling rate of this product is 470 S/s. Differential input type Interface Type: 3-Wire, SPI Sigma-Delta architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing The height of the product is 1.05 mm. +/- 2.5 V Input Voltage 5 mm long Analog Devices is a trusted brand for quality electronics EVAL-AD7785EBZ is a versatile development platform for hardware and software +/- 10 uV is 0.2%. INL is within +/- 15 ppm 2.7 V to 5.25 V operating supply voltage range 2.5 mW ADCs - Analog to Digital Converters product type 96 of 100 Data Converter ICs as subcategory 1. 0.006102 oz of Unit Weight

AD7785BRUZ Image

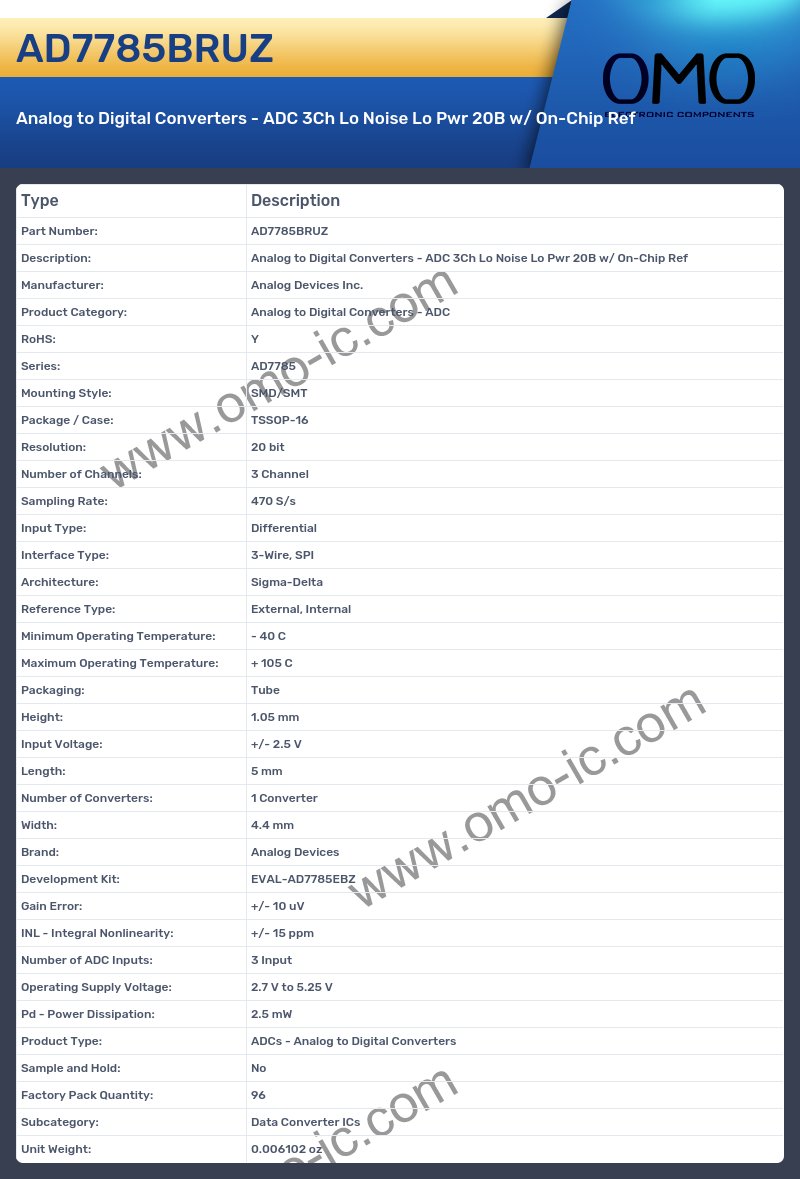

AD7785BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7785
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Resolution: 20 bit
• Number of Channels: 3 Channel
• Sampling Rate: 470 S/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Height: 1.05 mm
• Input Voltage: +/- 2.5 V
• Length: 5 mm
• Number of Converters: 1 Converter
• Width: 4.4 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7785EBZ
• Gain Error: +/- 10 uV
• INL - Integral Nonlinearity: +/- 15 ppm
• Number of ADC Inputs: 3 Input
• Operating Supply Voltage: 2.7 V to 5.25 V
• Pd - Power Dissipation: 2.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 96
• Subcategory: Data Converter ICs
• Unit Weight: 0.006102 oz
