AD7705BRZ-REEL7

AD7705BRZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 500 S/s. Differential input type Interface Type: 3-Wire, SPI Sigma-Delta architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 2.35 mm. 1.225 V/2.5 V, +/- 1.225 V/+/- 2.5 V Input Voltage 10.5 mm long Analog Devices is a trusted brand for quality electronics EVAL-AD7705EBZ is a versatile development platform for hardware and software +/- 0.003 %FSR is 0.2%. INL is within +/- 0.003 % FSR 5 V operating supply voltage range 6.5 mW ADCs - Analog to Digital Converters product type 400 of 100 Data Converter ICs as subcategory 1. 0.023492 oz of Unit Weight

AD7705BRZ-REEL7 Image

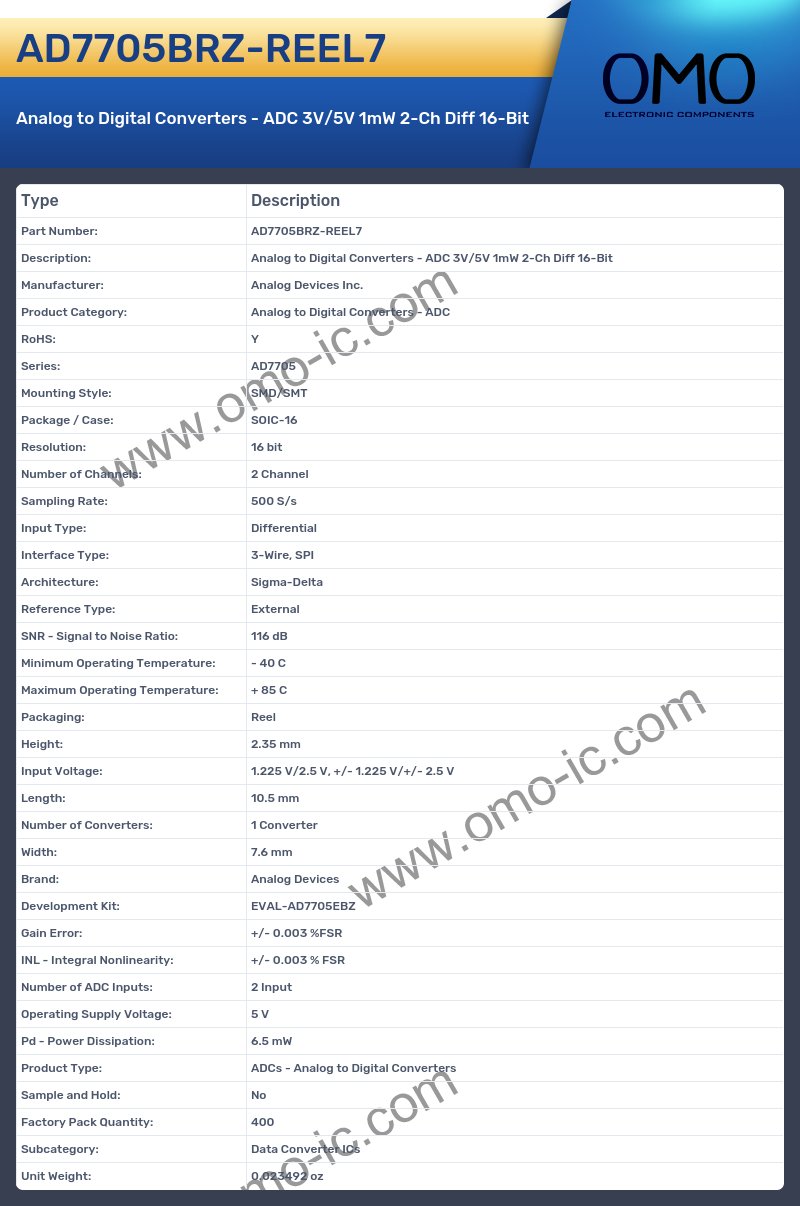

AD7705BRZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7705
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 16 bit
• Number of Channels: 2 Channel
• Sampling Rate: 500 S/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: Sigma-Delta
• Reference Type: External
• SNR - Signal to Noise Ratio: 116 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 2.35 mm
• Input Voltage: 1.225 V/2.5 V, +/- 1.225 V/+/- 2.5 V
• Length: 10.5 mm
• Number of Converters: 1 Converter
• Width: 7.6 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7705EBZ
• Gain Error: +/- 0.003 %FSR
• INL - Integral Nonlinearity: +/- 0.003 % FSR
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 6.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 400
• Subcategory: Data Converter ICs
• Unit Weight: 0.023492 oz
