AD7699BCBZ-RL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. WLCSP-20 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 500 kS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: 3-Wire, QSPI, SPI SAR architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing This device belongs to the PulSAR ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-AD7699EDZ is a versatile development platform for hardware and software The 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 0.5 LSB 32 mW ADCs - Analog to Digital Converters product type 1500 of 100 Data Converter ICs as subcategory THD is as low as - 97 dB. 1. 0.000847 oz of Unit Weight

AD7699BCBZ-RL7 Image

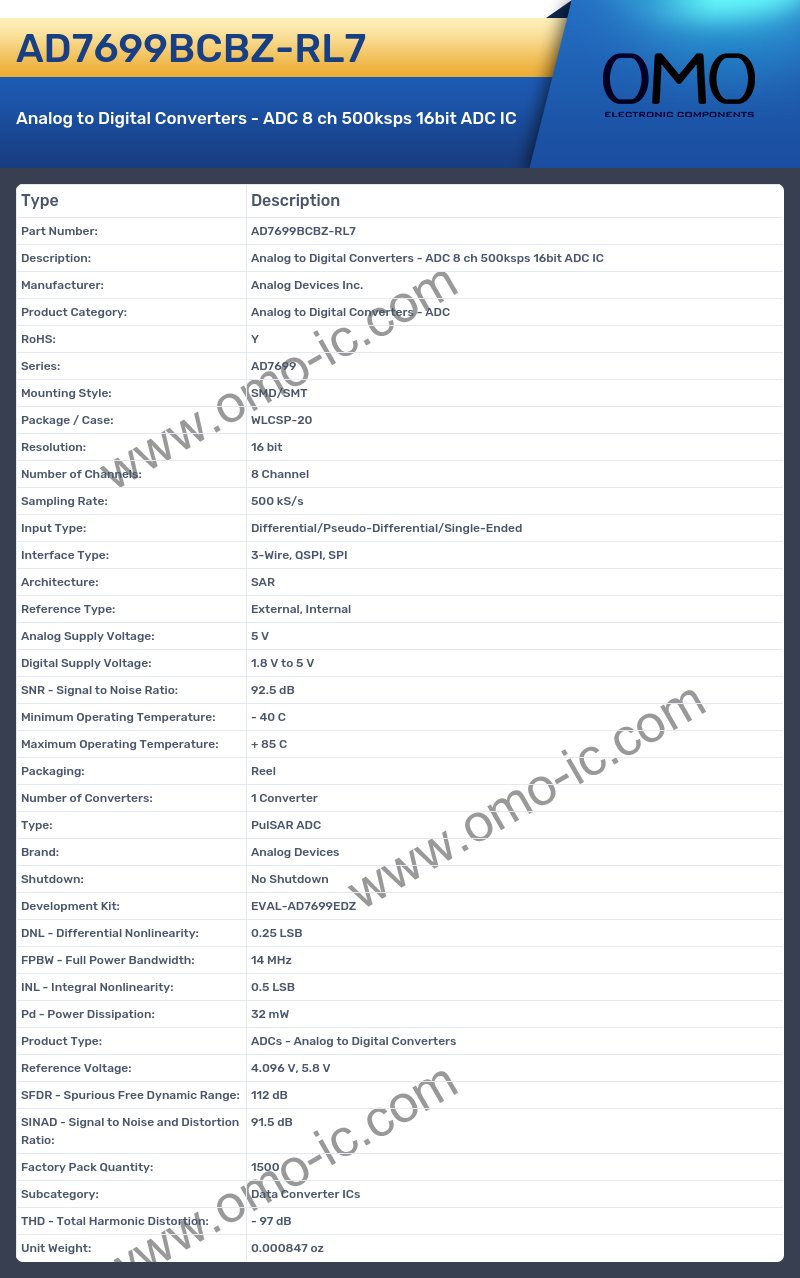

AD7699BCBZ-RL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7699
• Mounting Style: SMD/SMT
• Package / Case: WLCSP-20
• Resolution: 16 bit
• Number of Channels: 8 Channel
• Sampling Rate: 500 kS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: 3-Wire, QSPI, SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 1.8 V to 5 V
• SNR - Signal to Noise Ratio: 92.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Number of Converters: 1 Converter
• Type: PulSAR ADC
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: EVAL-AD7699EDZ
• DNL - Differential Nonlinearity: 0.25 LSB
• FPBW - Full Power Bandwidth: 14 MHz
• INL - Integral Nonlinearity: 0.5 LSB
• Pd - Power Dissipation: 32 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 4.096 V, 5.8 V
• SFDR - Spurious Free Dynamic Range: 112 dB
• SINAD - Signal to Noise and Distortion Ratio: 91.5 dB
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 97 dB
• Unit Weight: 0.000847 oz
