AD7683ARMZRL7

AD7683ARMZRL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. MSOP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 100 kS/s. Pseudo-Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.85 mm. 2.5 V/5 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7683SDZ is a versatile development platform for hardware and software +/- 30 LSB is 0.2%. INL is within +/- 6 LSB 2.7 V to 5.5 V operating supply voltage range 6 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.004938 oz of Unit Weight

AD7683ARMZRL7 Image

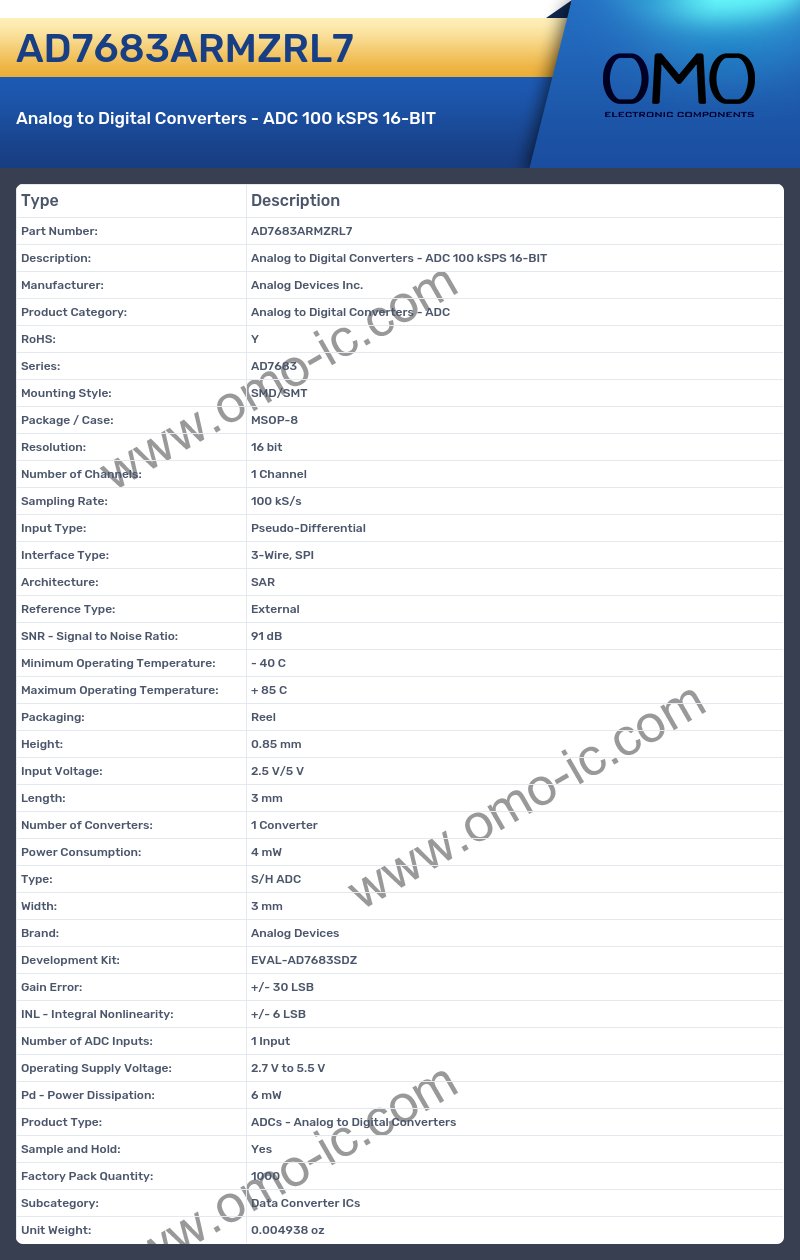

AD7683ARMZRL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7683
• Mounting Style: SMD/SMT
• Package / Case: MSOP-8
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 100 kS/s
• Input Type: Pseudo-Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 91 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.85 mm
• Input Voltage: 2.5 V/5 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Power Consumption: 4 mW
• Type: S/H ADC
• Width: 3 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7683SDZ
• Gain Error: +/- 30 LSB
• INL - Integral Nonlinearity: +/- 6 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 6 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.004938 oz
