AD7476AWYRMZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. MSOP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: 3-Wire, QSPI, SPI SAR architecture Internal is the reference type. This product requires an 2.35 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The AEC-Q100 Qualification Tube packaging for easy dispensing This device belongs to the High Speed ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The - 0.9 LSB/+ 1.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 1.5 LSB 5 V operating supply voltage range 17.5 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 80 dB. 1. 0.004938 oz of Unit Weight

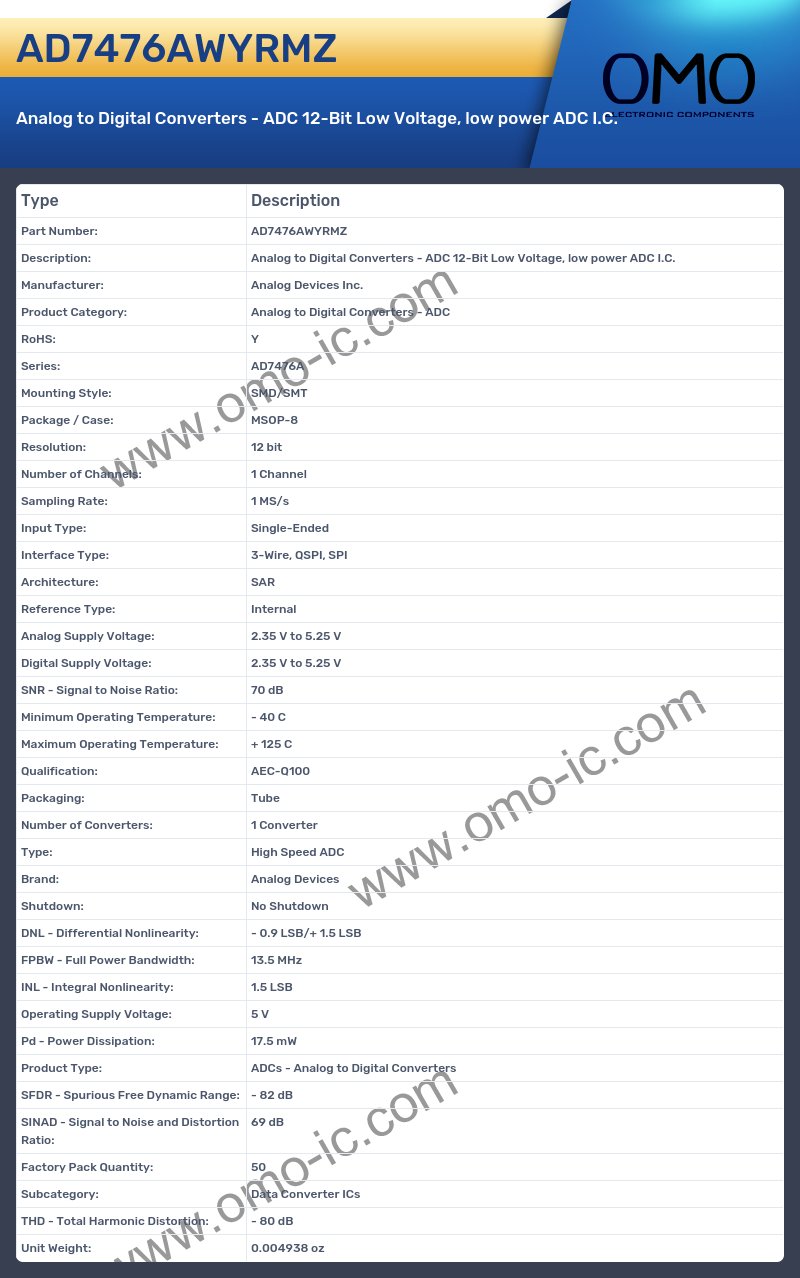

AD7476AWYRMZ Image

AD7476AWYRMZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7476A
• Mounting Style: SMD/SMT
• Package / Case: MSOP-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: 3-Wire, QSPI, SPI
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 2.35 V to 5.25 V
• Digital Supply Voltage: 2.35 V to 5.25 V
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Qualification: AEC-Q100
• Packaging: Tube
• Number of Converters: 1 Converter
• Type: High Speed ADC
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: - 0.9 LSB/+ 1.5 LSB
• FPBW - Full Power Bandwidth: 13.5 MHz
• INL - Integral Nonlinearity: 1.5 LSB
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 17.5 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: - 82 dB
• SINAD - Signal to Noise and Distortion Ratio: 69 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 80 dB
• Unit Weight: 0.004938 oz
