AD620ANZ

AD620ANZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 110 dB of 50 dB, ensuring reliable signal acquisition. This product has an 2 nA of 5 uA for precise signal processing. Supply Voltage - Max: 18 V Supply Voltage - Min: 2.3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 3.3 mm. 9.27 mm long Instrumentation Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Bandwidth at -3 dB is 1 MHz Gain ratio is 1 V/V to 10000 V/V. 1. The maximum dual supply voltage is +/- 18 V. +/- 2.3 V minimum dual supply voltage 2.3 V to 18 V operating supply voltage range 650 mW Instrumentation Amplifiers product type This product has a 140 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD620ANZ Image

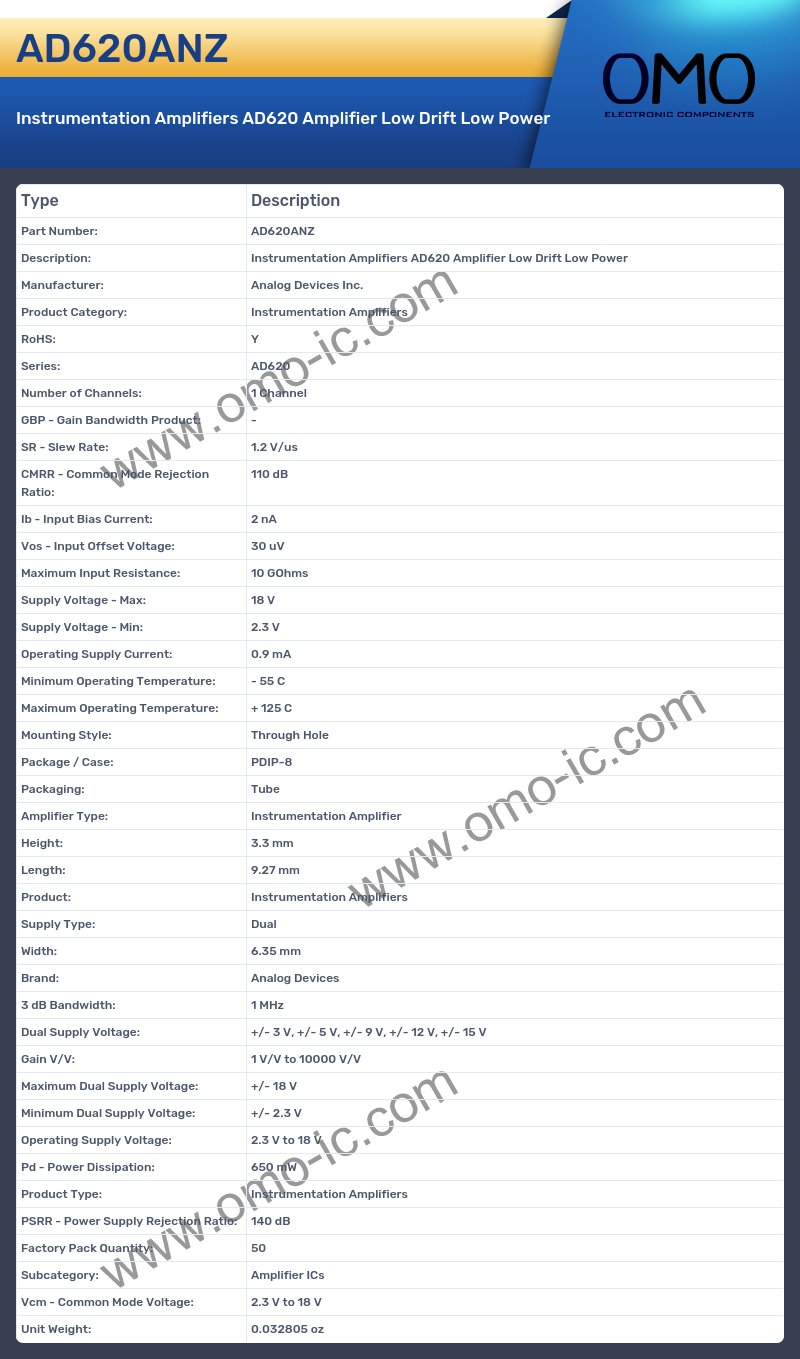

AD620ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: AD620
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 1.2 V/us
• CMRR - Common Mode Rejection Ratio: 110 dB
• Ib - Input Bias Current: 2 nA
• Vos - Input Offset Voltage: 30 uV
• Maximum Input Resistance: 10 GOhms
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 2.3 V
• Operating Supply Current: 0.9 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Height: 3.3 mm
• Length: 9.27 mm
• Product: Instrumentation Amplifiers
• Supply Type: Dual
• Width: 6.35 mm
• Brand: Analog Devices
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Gain V/V: 1 V/V to 10000 V/V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 2.3 V
• Operating Supply Voltage: 2.3 V to 18 V
• Pd - Power Dissipation: 650 mW
• Product Type: Instrumentation Amplifiers
• PSRR - Power Supply Rejection Ratio: 140 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: 2.3 V to 18 V
• Unit Weight: 0.032805 oz
