AD524AR-16

AD524AR-16 Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 70 dB of 50 dB, ensuring reliable signal acquisition. This product has an 50 nA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 2.35 mm (Max). 10.5 mm (Max) long Instrumentation Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Bandwidth at -3 dB is 1 MHz Gain ratio is 1 V/V, 10 V/V, 100 V/V, 1000 V/V. 1. The maximum dual supply voltage is +/- 18 V. +/- 6 V minimum dual supply voltage 12 V to 36 V operating supply voltage range 450 mW Instrumentation Amplifiers product type 47 of 100 Amplifier ICs as subcategory 1. 0.023492 oz of Unit Weight

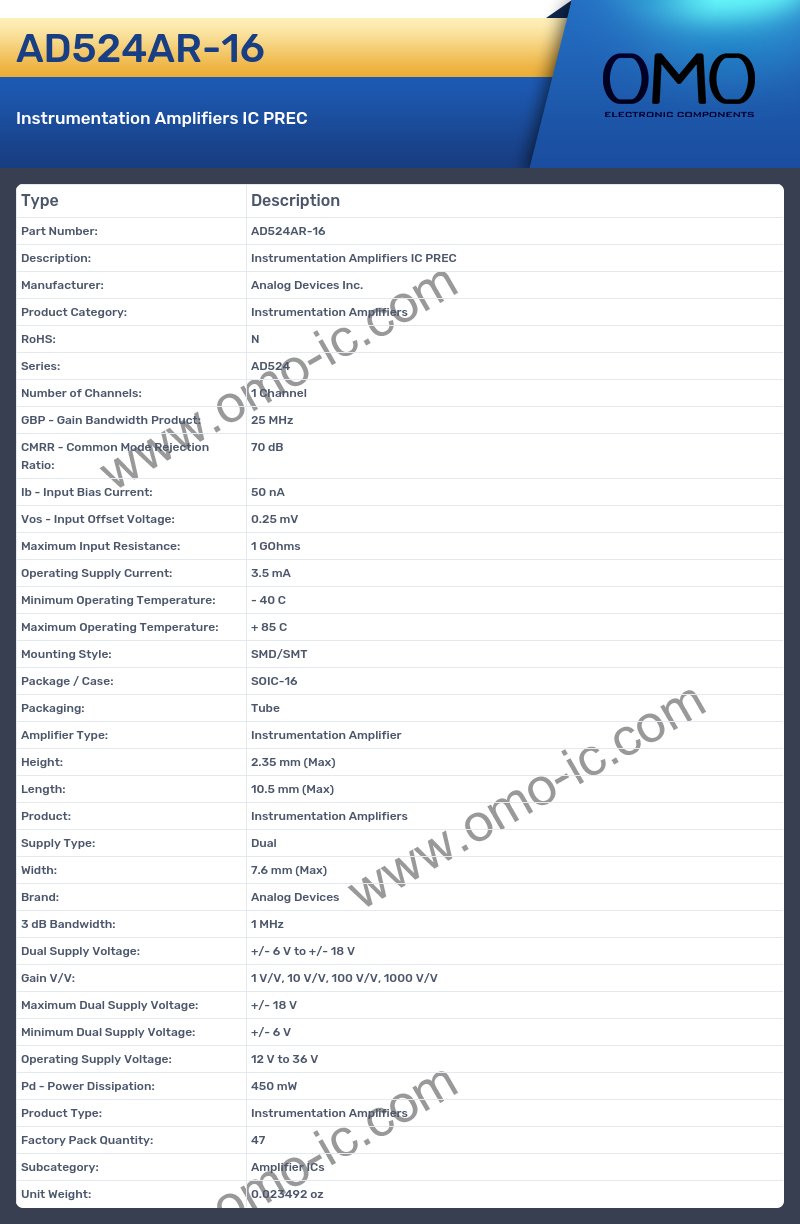

AD524AR-16 Image

AD524AR-16 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Instrumentation Amplifiers
• RoHS: N
• Series: AD524
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 25 MHz
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 50 nA
• Vos - Input Offset Voltage: 0.25 mV
• Maximum Input Resistance: 1 GOhms
• Operating Supply Current: 3.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Height: 2.35 mm (Max)
• Length: 10.5 mm (Max)
• Product: Instrumentation Amplifiers
• Supply Type: Dual
• Width: 7.6 mm (Max)
• Brand: Analog Devices
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 6 V to +/- 18 V
• Gain V/V: 1 V/V, 10 V/V, 100 V/V, 1000 V/V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 6 V
• Operating Supply Voltage: 12 V to 36 V
• Pd - Power Dissipation: 450 mW
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 47
• Subcategory: Amplifier ICs
• Unit Weight: 0.023492 oz
