74LCX00YMTR

74LCX00YMTR Overview

Product belongs to the Automotive, AEC-Q100, 74LCX series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SO-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-SO 4 is 8. 4 Gate is the number of gates included in this product. 10μA maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5.5 V Output current: 50 mA Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V 74LCX logic type 5.1 ns is 23 microseconds. Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 4 Output NAND logic function

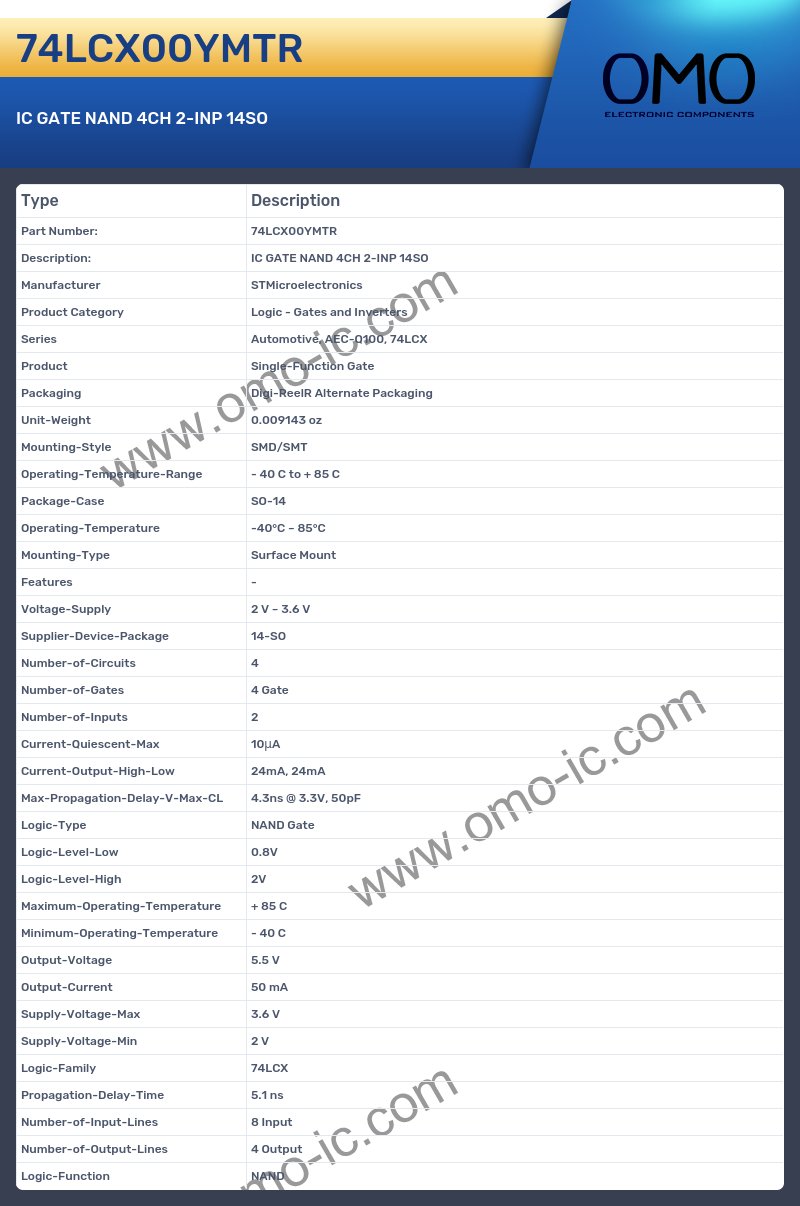

74LCX00YMTR Image

74LCX00YMTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series Automotive, AEC-Q100, 74LCX
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SO-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 4.3ns @ 3.3V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5.5 V
• Output-Current 50 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Logic-Family 74LCX
• Propagation-Delay-Time 5.1 ns
• Number-of-Input-Lines 8 Input
• Number-of-Output-Lines 4 Output
• Logic-Function NAND
