74ACT16861DLR Overview

Product belongs to the 74ACT series. This product is categorized as Standard Transceiver Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.024508 oz SMD/SMT Mounting-Style SSOP-56 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 20 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 56-SSOP 2 is 8. 2 element Transceiver, Non-Inverting logic type 10 bits per element Power-off control: 1.4 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 8 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 11.1 ns is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

74ACT16861DLR Image

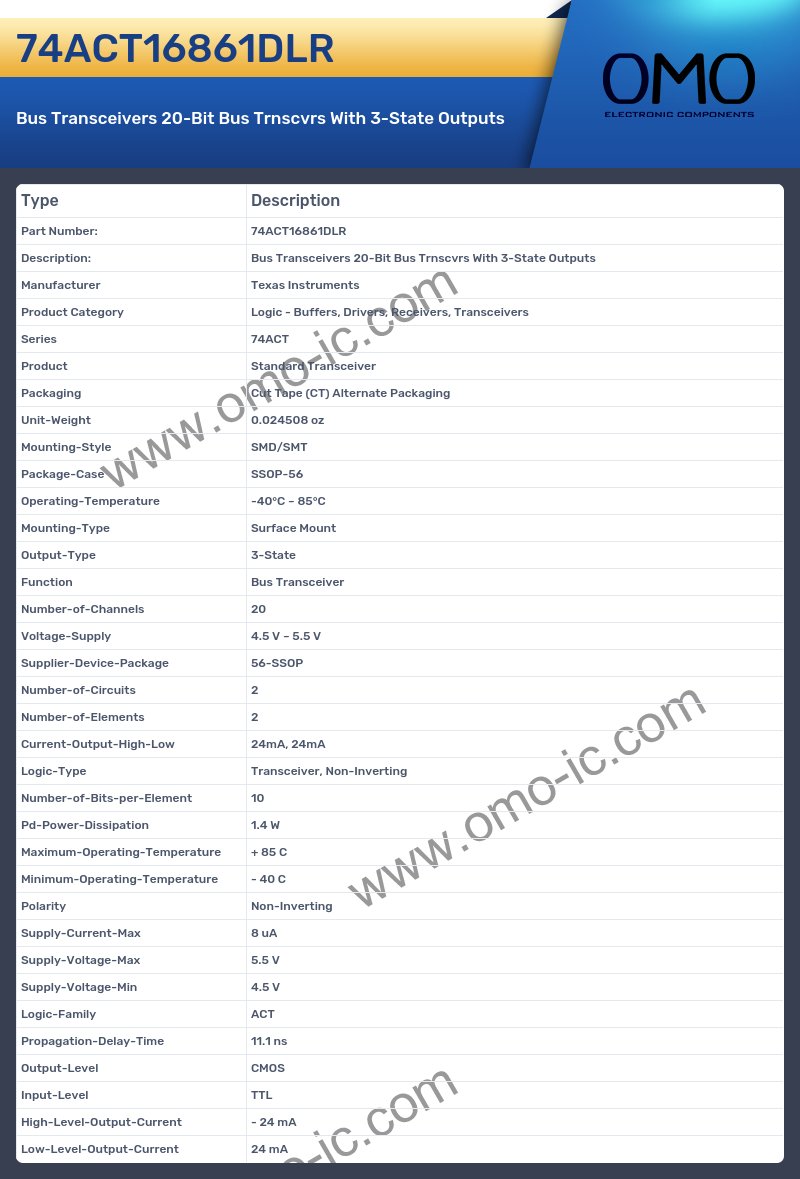

74ACT16861DLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Product Standard Transceiver
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.024508 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-56
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 20
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 56-SSOP
• Number-of-Circuits 2
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 10
• Pd-Power-Dissipation 1.4 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 8 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 11.1 ns
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
